| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | ISO9001,CE,RoHS |
| Model Number: | QCN0101-04P2-01EM-A |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 2 weeks |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 1000pcs per month |
| Current & Circuits: | 4*10A; 1*100M Ethernet | Channels & Type: | 1 Channel * Gas; Ø8 Tub @ G1/8” |
|---|---|---|---|
| Dielectric Strength: | ≥300VAC@50Hz;≥500VAC@50Hz | Isolation Resistance: | ≥500MΩ@500VDC, ≥100MΩ@100VDC |
| Contact Resistance: | 30mΩ (50rpm) | Contact Material: | Precious Metal |
| Housing Material: | Aluminium Alloy | Working Temperature: | -20°C~+60°C |
| Working Humidity: | 60% | IP Protection Grade: | IP51 |
| Operating Speed: | 0~50rpm | Rating Voltage: | 0-220VAC/VDC |
| Pressure, Max: | -100KPa~1.0MPa | ||
| High Light: | 1MPa Air Pneumatic Rotary Union,Rotary Union Signal Slip Ring,Combine Pneumatic Rotary Union |
||

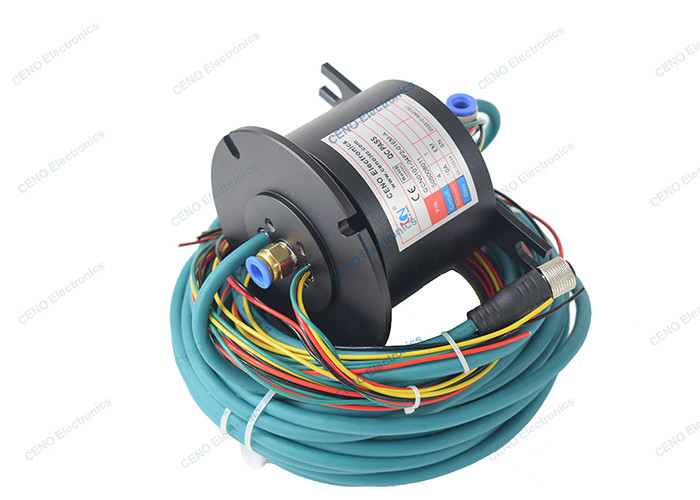

1MPa Air Pneumatic Rotary Union Combine Electric Power Ethernet Signal Slip Ring
QCN0101-04P2-01EM-A is CENO new design integrated slip ring which combines Electric power, 100M/1000M Ethernet Signal with 1 channel Pneumatic Rotary Union. And can be integrated kinds of signal or data, such as the RF, FORJs, HDMI, hydraulic, high current / voltage as different customer request and application. CENO slip ring have high quality with high/low temperature resistance, Anti-vibration, high reliability. For more information please contact us.
Features
Applications
Optional
Specification
|
QCN0101-04P2-01EM-A |
Specification |
| Current & Circuits | 4*circuits*10A; 1group*100M Ethernet |
| Rating Voltage | 0-220VAC/VDC |
| Dielectric strength | ≥500VAC@50Hz; ≥300VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC; ≥100MΩ@100VDC |
| Contact resistance | 30mΩ (50rpm) |
| Contact material | Precious Metal |
| Housing material | Aluminum Alloy |
| Working temperature | -20°C~+60°C |
| Working humidity | 60%RH |
| IP protection grade | IP51 |
| Operating speed | 0~50rpm |
| Lead wire size |
AWG17# Tin coated Teflon® UL CAT5e |
| Lead wire length |
Rotor : Net wire:10000mm; Other wire 1500mm Stator : 1500mm |
| Outer diameter | Ø86mm |
| Rotation Way | Flange installation |
| The Road | 1 channel * Gas |
| Connect type | Ø8 Tub @ G1/8” |
| Pressure, Max | -100KPa~1.0MPa |
Outline Drawing
Our company is proud to introduce our latest product - the Integrated Servo Motor Ethernet Slip Ring with Pneumatic Rotary Union. This innovative product is designed to provide exceptional performance and reliability in harsh industrial environments.
First and foremost, our slip ring is integrated with a servo motor, providing high-precision positioning and motion control capabilities. With a maximum speed of 5000 RPM and a torque range of 0.1-5 Nm, this product is perfect for a wide range of industrial applications.
In addition, our slip ring features a high-speed Ethernet connection, ensuring seamless communication between devices. With data transfer rates of up to 1000 Mbps, you can be sure that your data will be transmitted quickly and securely.
Another key feature of our product is the pneumatic rotary union. This component allows for the transfer of compressed air, hydraulic fluid, or other gases and liquids through the slip ring, making it ideal for use with pneumatic and hydraulic systems.
Our integrated slip ring is also highly durable, designed to withstand extreme temperatures, humidity, and vibration. With a protection rating of IP65, you can rest assured that your equipment will be well-protected in even the harshest conditions.
Overall, our Integrated Servo Motor Ethernet Slip Ring with Pneumatic Rotary Union is an excellent choice for anyone in need of a high-quality, reliable slip ring for industrial applications. Contact us today to learn more or to place an order.
Our Service
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.
FAQ
1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.
2. How long have we been in the business?
CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.
3. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.
4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.
5. Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
