| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN000-10P4-03P1 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 1000pcs per month |
| Current & Circuits: | 10circuits*20A; 3circuits * 5A | Rating Voltage: | 0~400VAC/VDC |
|---|---|---|---|
| Dielectric Strength: | ≥1500VAC@50Hz ≥300VAC@50Hz | Isolation Resistance: | ≥500MΩ@500VDC ≥100MΩ@300VDC |
| Electrical Noise: | ≤30mΩ (50rpm) | Operating Speed: | 0~150rpm |
| Contact Material: | Precious Metal; Gold To Gold | Housing Material: | Aluminum Alloy |
| Working Temperature: | -20°C~+80°C | Working Humidity: | 60% |
| IP Protection Grade: | IP54 | Lead Wire Length: | Rotor : 5000mm Stator : 5000mm |
| External Diameter: | Ø86mm | Rotation Way: | Flange Installation |
| High Light: | 20A Power Slip Ring,IP54 Power Slip Ring,Industrial Slip Ring 50A |
||

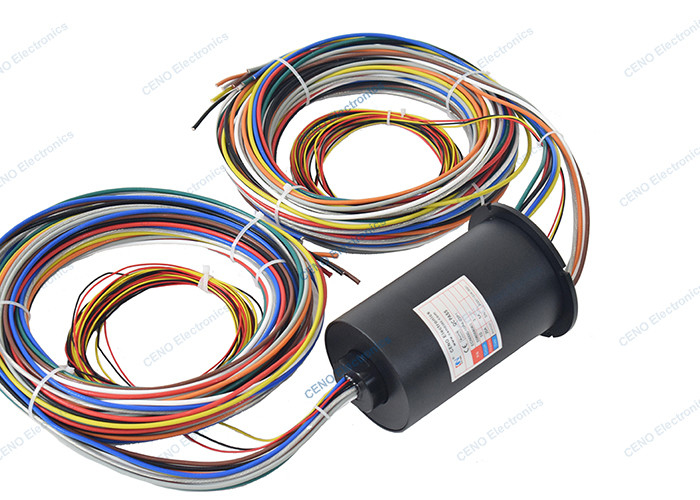

Solid electric power slip ring with 20A 50A for Industry Automatic System
ECN000-10P4-03P1 is CENO industry slip ring with 13 circuits of electric power for the industry equipment. Along with the trend of low carbon emissions, more and more machines will choose electric power replace the Petroleum or coal energy. Take the Energy industry, Manufacturing, automotive industry or ship building industry for example. At ship building, It can save 10% energy if adopt all-electric propulsion system instead of traditional mechanical shaft driving. More information please contact us.
Features
Applications
Optional
Specification
|
ECN000-10P4-03P1 |
Specification |
| Current & Circuits |
10circuits * 20A (400VAC) 3 circuits * 5A (24VAC) |
| Rating Voltage | 0-400VAC/VDC |
| Dielectric strength |
≥1500VAC@50Hz ≥300VAC@50Hz |
| Isolation resistance |
≥500MΩ@500VDC ≥100MΩ@300VDC |
| Contact resistance | 30mΩ (50rpm) |
| Contact material | Precious Metal; Gold to Gold |
| Housing material | Aluminum Alloy |
| Working temperature | -20°C~+80°C |
| Working humidity | 60%RH |
| IP protection grade | IP54 |
| Operating speed | 0~150rpm |
| Lead wire length | Rotor:5000mm; Stator:5000mm |
| Rotation Way | Flange installation |
Outline Drawing
Why Choose Us:
The Experts in Ethernet Signal Slip Rings and Low Temperature Slip Rings
For almost 20 years, CENO Electronics has been the go-to company for the development and manufacturing of slip rings. With over 5000 customized products available, we take pride in offering a wide range of slip ring solutions, including electric slip rings, signal slip rings, functional slip rings, pneumatic & hydraulic rotary joints, fiber optic rotary joints, and RF rotary joints.
One specialty that sets us apart is our expertise in Ethernet signal slip rings and low temperature slip rings. Our Ethernet signal slip rings can transfer high speed data signals without interference, while our low temperature slip rings are designed to operate in temperatures as low as -60˚C. These important features make our slip rings reliable solutions for applications in military, aerospace, and other industries.
At CENO Electronics, we value our customers and strive to provide them with the best products and services possible. Our commitment to quality, innovation, and customization has earned us the trust and loyalty of our clients. Therefore, if you are looking for a reliable slip ring supplier with extensive experience in Ethernet signal slip rings and low temperature slip rings, look no further than CENO Electronics.
