| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN030-105P |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 1000pcs per month |
| Current & Circuits: | 5*100A; 5*50A; 5*25A; 10*10A; 20*5A; 60*2A | Rating Voltage: | 0~380VAC/VDC |
|---|---|---|---|
| Dielectric Strength: | ≥1000VAC@50Hz | Isolation Resistance: | 500MΩ@500VDC |
| Electrical Noise: | ≤30mΩ (50rpm) | Operating Speed: | 0~400rpm |
| Contact Material: | Precious Metal | Housing Material: | Aluminum Alloy |
| Working Temperature: | -20°C~+120°C | Working Humidity: | 60% |
| IP Protection Grade: | IP51 | Inner Diameter: | Ø30mm |
| External Diameter: | Ø170mm | Lead Wire Length: | Rotor: 5500mm; Stator: 2000mm |
| Installation: | Stator Side Fixed On Main Shaft With Screws | ||
| High Light: | industry multi-channels Slip Rings,through hole multi-channels Slip Rings,105 Circuits Industrial Slip Ring |
||

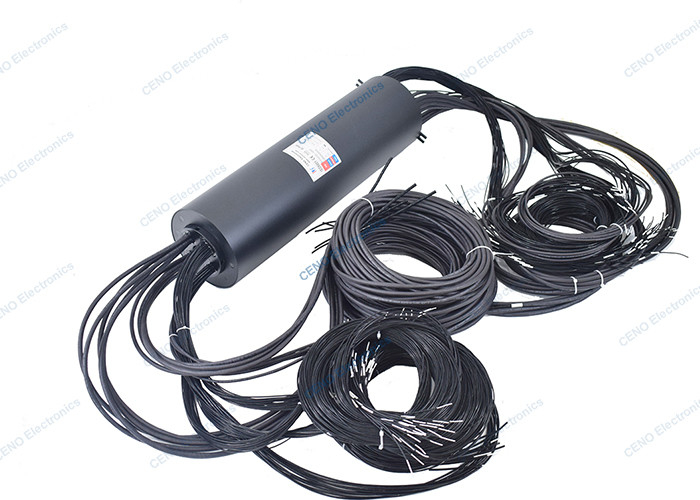

Industrial Through Hole Slip Rings Function with 105 Circuits Multi-channels
ECN030-105P is CENO’s customized slip ring with 105 circuits for electrical power, current including 100A, 50A, 25A, 10A, 5A, 2A and option as special applications. In CENO, multi-channel slip ring refer to conductive slip rings with more than 50 channels and circuits can be up to 500 circuits, which can integrate high current, low current, digital / analog signals, optical fiber, RF signal or pneumatic /Hydraulic. Working speed is 0~400rpm or higher as customized and still maintains the long life characteristics of the product. More information please contact us.
Features
Applications
Optional
Specification
|
ECN030-105P |
Specification |
| Current & Circuits | 5 circuits* 100A; 5Circuits* 50A; 5Circuits* 25A; 10 Circuits* 10A; 20 Circuits* 5A; 60 Circuits* 2A |
| Rating Voltage | 380VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz |
| Isolation resistance | 500MΩ@500VDC |
| Contact resistance | 30mΩ (50rpm) |
| Temperature | -20°C~+120°C |
| Working humidity | 60%RH |
| IP protection grade | IP51 |
| Operating speed | 0~400rpm |
| Inner Diameter | Ø30mm |
| External Diameter | Ø170mm |
| Lead wire length | Rotor: 5500mm; Stator: 2000mm |
| Installation | Stator side fixed on main shaft with screws |
| Contact Material | Precious Metal |
| Housing Material | Aluminum Alloy |
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
