3 Flat Pin No mercury inside Insert type High Current Slip Ring For Industrial Manufacturing
We can customize slip rings with different parameters such as diameter, current, number
of circuits, speed and protection level according to customers' requirements.Widely used
in security, automation, power, instrumentation, chemical, metallurgy, medical, aviation,
military, shipping, transport and other mechanical and electrical equipment.For more details,
see www.ceno360.com
Typical applications
◆ Winding machine
◆ Packing robot
◆ Rotary lamp box
◆ Electro plating line
Advantages
◆ Very low electric noise
◆ Maintenance free and better installation than traditional slip rings
◆ Suitable for signal and power transfer of rotating devices or instrument
◆ Compact size
◆ No mercury inside
◆ Flat pin replace lead wire
Specification
HCN03A Specification
|

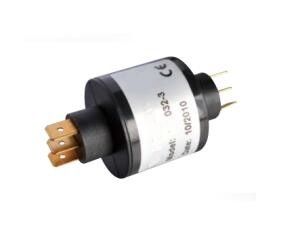

Picture | |
OD | 32mm |
|
Number of pin | 3 | |
Operating speed | 0-400rpm | |
Current Rating | 14Amp for each pin | |
Diaelectric strength | 500VAC@50Hz,60s | |
Insulation resistance | 1000MΩ/500VDC | |
Voltage | 240VDC/240VAC | |
Electrical noise | <10mΩ | |
Operating temperature | -20~+60℃ | |
Operating Humidity | 60%RH | |
Contact material | Precious metal | |
Flat pin thickness x width | 0.8×6.3mm | |
Housing material | Engineering plastic or metal |
Outline drawing :
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
