|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Carton/As request|
|Delivery Time:||2 weeks|
|Payment Terms:||T/T,Paypal,Western Union|
|Supply Ability:||10000pcs per month|
|Voltage:||380VAC||Contact Material:||Gold To Gold|
|Lead Wire Size:||AWG16#Wire ®UL||Rotation Speed:||0~10rpm|
flat slip ring,
platter slip ring

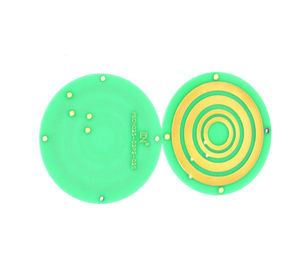

Two Circuit Two Signal 380VAC Pancake Slip Ring For Moving Medium System
Separate pancake slip ring belongs to pancake series slip ring.Its outline is different from the integrated pancake slip ring due to the separate structure.It is usually to be required on certain installation space which has no more height room,but normally the the rotation speed is not too fast,like lower than 100RPM.However,CENO also designed some type of separate slip ring for some high speed what higher than 100RPM.
|Circuit||2*10A,2* signal||Protection Grade||IP00|
|Working Speed||0~10rpm||Rating Voltage||380VAC|
|Insulation Resistance||200MΩ@500VDC||Contact Material||Gold to Gold|
|Dielectric Strength||≥500V@50Hz||Friction torque||≤0.15N*m|
|Electrical Noise||Max 70mΩ(50rpm)||Lead Wire Size||AWG16#Wire ®UL|
|Working Humidity||60%RH||Lead Wire Length||Rotor:915mm, Stator:915mm|
|Working temperature||-45℃~+80℃||Rotation Way||PCB board fixed on customers flange|
|Housing Material||Oxidation Aluminum Alloy||PCB||FR-4|
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
