|Place of Origin:||China|
|Minimum Order Quantity:||1pcs|
|Packaging Details:||Carton/As request|
|Delivery Time:||1 week|
|Payment Terms:||T/T,Paypal, Western Union|
|Supply Ability:||1000pcs per month|
|Current:||4*100 A||Rating Voltage:||660VAC|
|Working Speed:||0~50rpm||Protection Grade:||IP65|
|Anti-explosion Grade:||Exd II BT4 Gb IP65||Contact Material:||Copper Graphite|
large slip ring,
signal slip ring

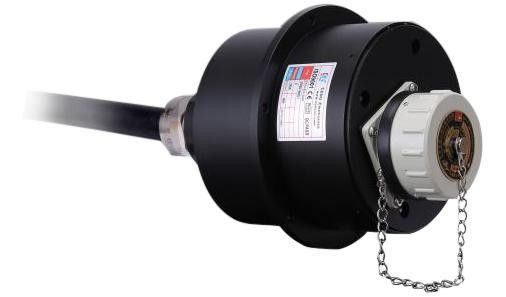

High IP67 Protection Class Explosion-Proof Slip Ring With High Reliability For Chemical Equipment
Explosion-proof conductive slip ring is a kind of slip ring with high safety and reliability, suitable working in explosive environment, such as oil platform, explosive material packaging equipment, agricultural products processing equipment, coal mine, spraying and other dangerous places. It can meet both explosive gas environment and explosive dust environment and the protection grade is IP65 IP66 or IP68.
|Circuit||4*100 A||Protection grade||IP65|
|Exd II BT4 Gb IP65|
|Insulation Resistance||≥500MΩ@100VDC||Rotating speed||0~50rpm|
|Dielectric Strength||≥2500VAC@50Hz||Resistance fluctuation||10mΩ|
|Wire spec||25mm²||Contact Material||Copper graphite|
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
Contact Person: Sales Manager
