| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | RCN2402C |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 500pcs per month |
| Circuit: | 24*2A | Voltage: | 240VAC/DC |
|---|---|---|---|
| Contact Material: | Precious Metal | Rotating Speed: | 0~50rpm |
| High Light: | coaxial slip ring,power slip ring |
||

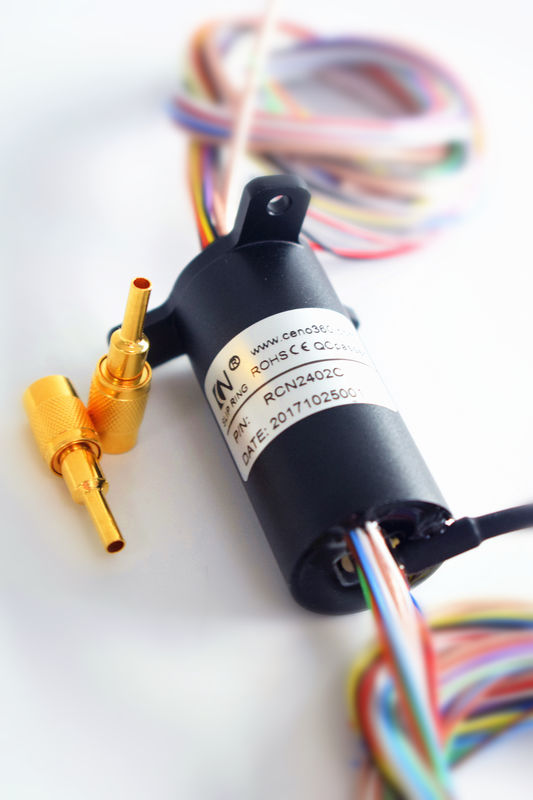

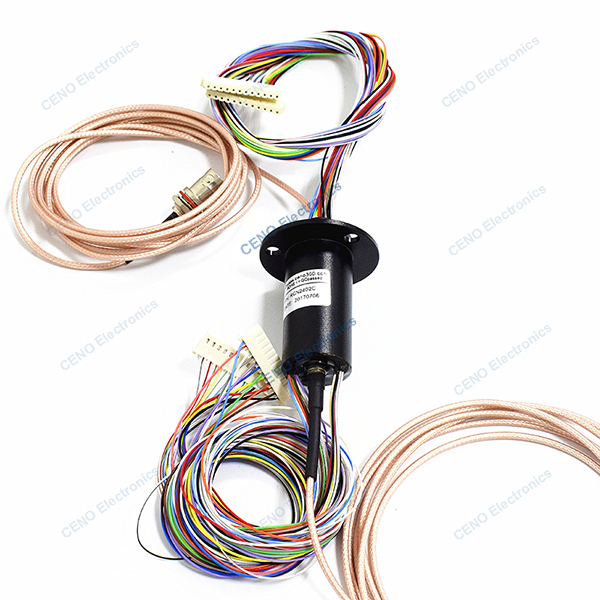

Low Electrical Noise High Definition Slip Ring With HDM/SDI Rotary Joint
The HDMI slip ring is in everywhere,in HD camera, monitoring,VR application, infrared photography and other small digital equipment,
it is widely used in such applications ,it has the advantages on transmission stability, attenuation loss of signal and ultra-low transmission fluctuation.
Applications
Features
Options
Specification
| Parameter | |||
| Circuit | 24*2A | Protection grade | IP54 |
| Voltage | 240VAC/DC | Working temperature | -20°C ~ + 60°C |
| Insulation | 100 MΩ@300VDC | Rotating speed | 0~50rpm |
| Dielectric strength | ≥300V@50hz | Contact material | Precious metal |
| Electric noise | ≤ 50 mΩ@50rpm | Housing material | Aluminum alloy oxidation black |
| Working Humidity | 60%RH | torque | ≤0.88 g.m |
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
Contact Person: Lam
Tel: +8615767660191
