Special Capsule Slip Ring Low Torque Transfer Power And Signal UAV Application

Special Capsule Slip Ring Transfer Power And Signal For UAV Application

Electrical slip ring is a rotating assembly used to transfer power, control circuits or data (analog / digital) from stationary inlets to rotating outlets. CENO ACN series slip rings, versatile and compact, feature a low torque design with gold-to-gold contacts and offer low electrical noise. Standard models are available from 2 to 56 circuits.

Features

• Transmit data and analog signal
• Compact size, low electrical noise
• Low torque, smooth rotation

Applications

• UAV
• Automatic arm
• Instrument and medical equipment

Optional

• Circuit number
• Lead wire length
• Operating speed

Specification

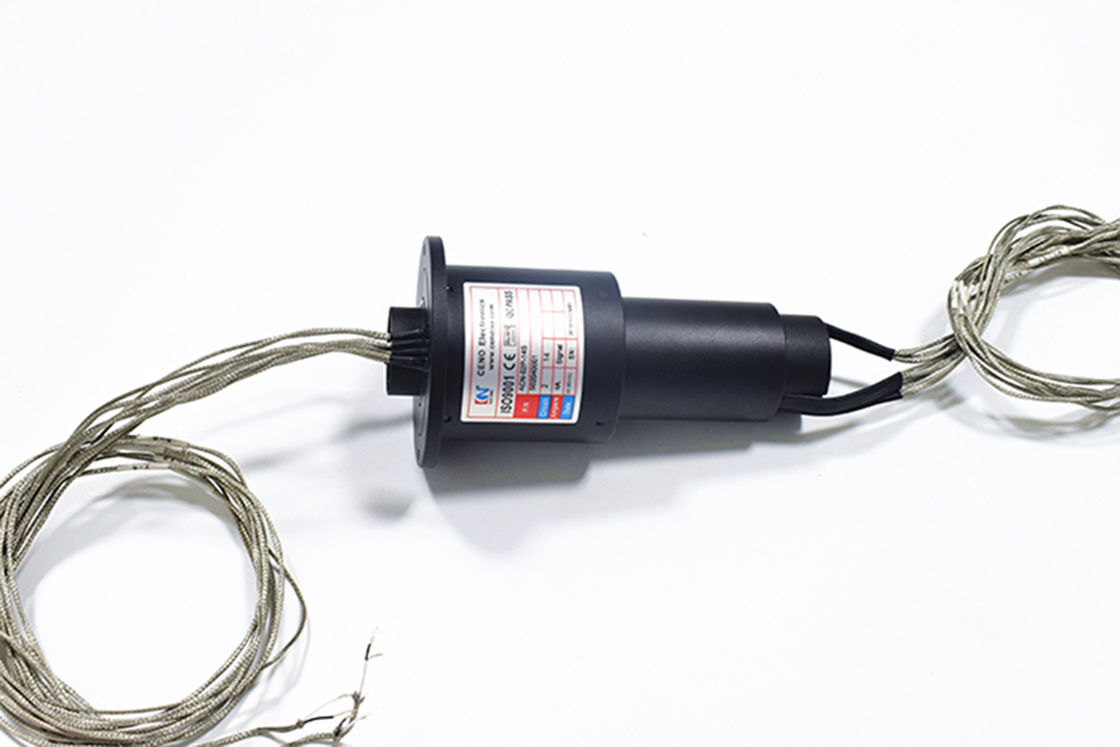

ACN-02P-14S Specification		Picture
Current	2*4A , 14*signal
Voltage	240 VAC/DC
Electrical noise	≤10m Ω
Dielectric strength	≥500V@50Hz
Insulation resistance	≥100MΩ@500VDC
Operating speed	0-60 rpm
Contact material	Precious metals
Housing material	Aluminum alloy
Operating temperature	-30~+60℃
IP protection grade	IP54

Outline drawing

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
