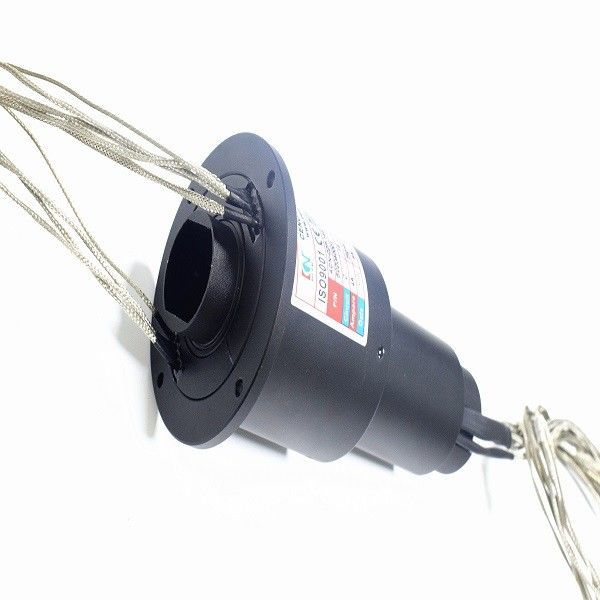

ACN-02P-14S IP54 140mm 60rpm Capsule Slip Ring

ACN-02P-14S IP54 140mm 60rpm Capsule Slip Ring

  • ACN-02P-14S IP54 140mm 60rpm Capsule Slip Ring
ACN-02P-14S IP54 140mm 60rpm Capsule Slip Ring
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ACN-02P-14S
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Circuits: 2*4A,14*Signal Through Bore Size: 140mm
Working Speed: 0~60 Rpm Contact Material: Precious Metals
Rating Voltage: 0~240VAC/VDC
High Light:

60rpm Capsule Slip Ring

,

IP54 Capsule Slip Ring

,

140mm Mechanical Slip Ring

Compact size, 5.5mm~25mm are available,ACN-02P-14S



This is capsule slip ring with compact size ,it is designed for high definition video surveillance or serial communication application.Stable data transmission,no packet loss ,low return loss,low error rate,super high SNR.Ring number are range from 2 rings up to 100 rings.power and signal are easily to be integrated into one slip ring,outstanding signal types including Ethernet,canbus,profibus,RS,HDMI,HD-SDI,USB and so on. Typical outside diameter is 5.5mm,12.4mm,22mm in these series.



Specification





ACN-02P-14S
Current 2*4A,14*Signal
Voltage 0~240VAC/VDC
Electrical noise ≤35mΩ(50rpm)
Dielectric strength ≥500V@50Hz(signal)
Insulation resistance ≥100MΩ@500VDC(signal)
Operating speed 0-60 rpm
Contact material precious metals
Operating temperature -30~+60°C
IP protection grade IP54
Housing material Aluminum alloy





Features

  • Compact size, 5.5mm~25mm are available
  • Adopt military grade surface treatment,gold to gold contact
  • Low contact resistance,low electrical noise,low torque and smooth rotation



Applications

  • Radar antenna
  • Military equipment
  • Mechanical arm
  • Medical equipment



Optional

  • Signal type
  • Circuit number
  • Current rating
  • Connector type
  • IP protection grade

ACN-02P-14S IP54 140mm 60rpm Capsule Slip Ring 0






Why with CENO


CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
