| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN000-05P |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 1000pcs per month |
| Circuits: | 2*20A,1*PE,2*1A | Volatge: | 120VAC / 24VDC |
|---|---|---|---|
| Protection Grade: | IP65 | Through Bore Size: | Blind Through Bore |
| Contact Material: | Precious Metal | Housing Material: | Aluminium Alloy |
| Working Temperature: | -20°C~+60°C | Working Speed: | 0~10 Rpm |
| High Light: | 20A Blind Through Bore Slip Ring,IP65 Food Industry Slip Ring,IP65 oil well Slip Ring |
||

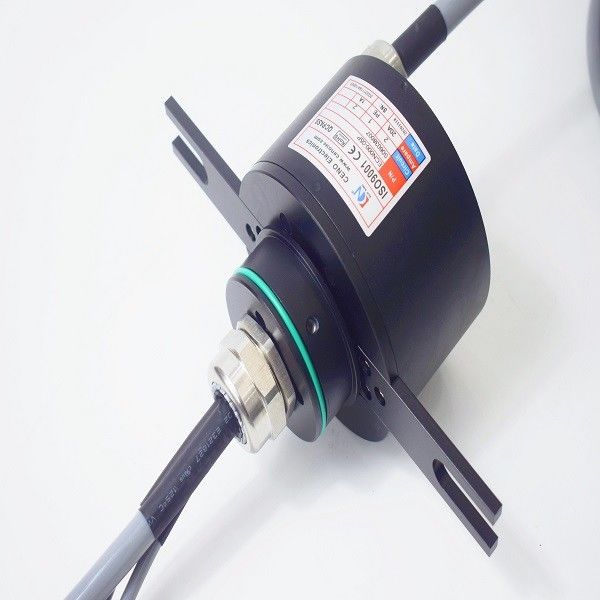

Food Industry IP65 Waterproof 20A Blind Through Bore Slip Ring
IP65 waterproof slip ring with 20A power, aluminium housing ,used for offshore equipment,food industry,oil well.
ECN series is a family of robust through bore slip rings, with a central hole up to 980 mm. Slip rings of the this series have the characteristics of precious metal contact and a long service life up to 230 million turns. Furthermore, they are water-proof, pressure-proof,and vibration resistant. Customizable lead wires and connectors support any plug-in including flying lead. CENO’s waterproof slip ring can reach to IP65, IP67, IP68,it’s can work under water 1000M.Typical application such as ship offshore equipment,oil drilling and food processing.any special requests please contact with us .
Feature
Application
Optional
Specification
| ECN000-05P | Specification |
| Circuits & Current | 2*20A,1*PE,2*1A |
| Voltage | 120VAC / 24VDC |
| Electrical noise | Max 10mΩ (50rpm) |
| Dielectric strength |
≥1000V@50Hz ≥500V@50Hz (signal) |
| Insulation resistance |
500MΩ@500VDC 100MΩ@300VDC (signal) |
| Operating speed | 0-10 rpm |
| Contact material | Precious metal |
| Housing material | Aluminium housing |
| IP protection grade | IP65 |
| Through hole size | None |
| Working temperature | -20C°~ +60C° |
Outline drawing
Our Service
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.
FAQ
1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.
2. How long have we been in the business?
CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.
3. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.
4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.
5. Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Why with CENO
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
