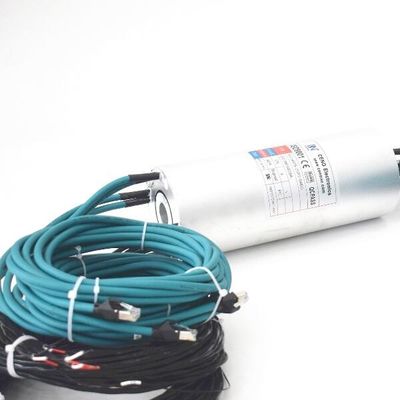

25.4 Mm Inner Bore Ethernet Rotary Joint 300rpm Aluminium Housing
  • 25.4 Mm Inner Bore Ethernet Rotary Joint 300rpm Aluminium Housing
  • 25.4 Mm Inner Bore Ethernet Rotary Joint 300rpm Aluminium Housing

25.4 Mm Inner Bore Ethernet Rotary Joint 300rpm Aluminium Housing

Place of Origin China
Brand Name CENO
Certification CE,RoHS,ISO9001,UL
Model Number ECN025-25P2-04EG
Product Details
Current:
25*10A,1*PE,4*1000M Ethernet
Through Bore Size:
25.4 Mm
Protection Grade:
IP51
Working Speed:
0~300rpm
Contact Material:
Precious Metal
Rating Voltage:
0~380VAC/VDC
Housing Material:
Aluminium Alloy
Electrical Noise:
≤35mΩ(50rpm)
Application:
Simulation Test Equipment,automation Machinery
Highlight:

25.4 Mm Ethernet Rotary Joint

,

300rpm Ethernet Rotary Joint

,

IP51 Ethernet Slip Ring

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Carton/As request
Delivery Time
1 week
Payment Terms
T/T,Paypal, Western Union
Supply Ability
500pcs per month
Product Description

 25.4 Mm Inner Bore Ethernet Rotary Joint 300rpm Aluminium Housing

25.4 mm inner bore Ethernet slip ring ,working speed 300rpm,aluminium housing,For simulation test equipment,oil well ,any special requirements please feel free contact with us .

CENO has developed signal slip ring with Gigabit Ethernet signal character base on market requirements.The Ethernet slip ring comply with EMC standards & meet the requirements of signal impedance matching to make sure transmission low loss, no error code,long distance transmission. CENO’s Ethernet slip ring transmission distance could up to 1000Mbps,or over this speed.It could integrate other current and signal into one slip ring for different customer’s requirement. ECN025-25P2-04EG transmit 4 groups of 1000M Ethernet signal and 25 rings of 10A power. CENO's Ethernet technology is the most popular used network technology,it provides 1 GBPS bandwidth of communication for Internet and communications system.if you have any special requirements please feel free to contact with CENO team.


Specification



ECN025-25P2-04EG Specification
Circuits & Current25*10A,1*PE,4*1000M Ethernet
Voltage0~380VAC/VDC
Dielectric strength

≥1000V@50Hz (power)

≥300V@50Hz (signal)

Insulation resistance

≥500MΩ@500VDC (power)

≥100MΩ@500VDC (signal)

Electrical noise≤ 35mΩ (50 rpm)
Operating speed0-300 rpm
Contact materialPrecious metal
Housing materialAluminum alloy
IP gradeIP51
Working temperature-20°C~+60°C
Inner diameter size25.4 mm


     Features

  • Waterproof grade IP51
  • Working speed 300 rpm
  • 1000M Ethernet signal
  • Inner diameter 25.4mm
  • Power integrated signal








Applications

  • Simulation test equipment
  • Automation machinery
  • Oil well industry
  • Medical mahines
  • Radar antennas




      Optional

  • Circuits number
  • IP protection grade
  • Through bore size
  • Signal type & current rating






Outline Drawing


25.4 Mm Inner Bore Ethernet Rotary Joint 300rpm Aluminium Housing 0















Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
25.4 Mm Inner Bore Ethernet Rotary Joint 300rpm Aluminium Housing 1

Certification
ISO9001,CE,RoHS,UL,Explosion-proof
25.4 Mm Inner Bore Ethernet Rotary Joint 300rpm Aluminium Housing 2

CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.


Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
