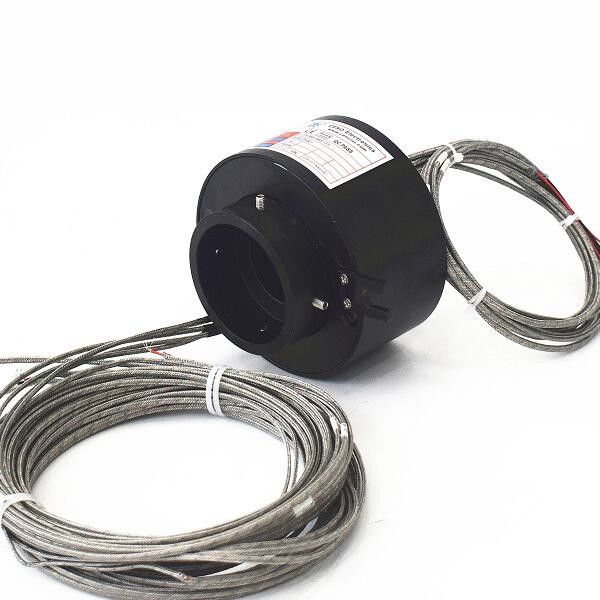

4000rpm High Speed Slip Ring With Gold Contacts Inner Bore 40mm
4000rpm high speed slip ring with gold to gold contacts,4 groups K thermocouple signal,inner bore 40mm,used for high speed railway,high speed roation table and test equipment.
High speed slip ring is a product specially developed to meet high speed serial digital signal or analog signal transmission.CENO high speed slip rings are demand very high accurate tolerances of the rotors, bearing space,high request of the concentricity of the rotors with other related parts.This series of products support high frequency signal transmission,and also support mixed transmission of high frequency signal and control signal,communication signal,power supply,fluid medium.ECN040-08S-GS with inner diameter 40mm and 4 groups K type thermocouple signal,the operating speed from 1000rpm to 4000rpm,Gold to gold contacts material which can meet the service life of 100 million revolutions.Any special requirements please contact with us .we will reply you as soon as possible .
Features
- High speed upto 4000rpm
- Gold to gold contacts
- K thermocouple signal
- Smooth running
Applications
- High speed train
- Testing Equipment
- Automation equipment
- Rotary tables
Optional
- Working speed
- Signal type & current rating
- Current & ring numbers
- Integrate various signal
- IP protection grade
Specification
| ECN040-08S-GS |
Specification |
| Circuits & Current |
4 groups K thermocouple signal |
| Voltage |
0~220VAC/VDC |
| Dielectric strength |
300V@50Hz between two lines |
| Insulation resistance |
≥100MΩ@100VDC |
| Operating speed |
1000rpm to 4000 rpm |
| Working temperature |
-20℃~+60℃ |
| Contact material |
Gold to gold |
| Housing material |
Aluminum alloy |
| IP grade |
IP51 |
| Through bore size |
40mm |
Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
