| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN000-07P-17S |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons/As request |
| Delivery Time: | 1 weeks |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 1000pcs per month |
| Rating Voltage: | 0-380VAC | Operating Speed: | 0-250rpm |
|---|---|---|---|
| Maintainability: | Regular Maintenance | Contact Material: | Precious Metal |
| Housing Material: | Aluminium Alloy Sandblasted Black Oxide | IP Degree: | IP51 |
| Circuits: | 3*200A,4*30A,17*signal | Application: | Marine Crane,Propulsion,Engineering Machinery |
| High Light: | IP51 Carbon Brush Slip Ring,250rpm Carbon Brush Slip Ring,IP51 high power slip ring |
||

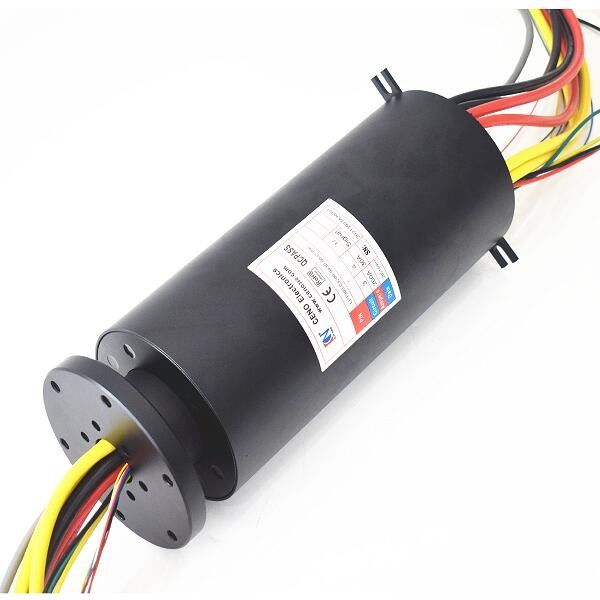

High Current IP51 Carbon Brush Slip Ring With Aluminium Housing
High current slip ring also named large current slip ring,max power upto 2000A,working speed 250rpm,used for cable reel,large material delivery equipment.
CENO's carbon brush slip ring is also named as large current collector or high power slip ring,which could transmit the current at least on 100A or above.The inner hole size can be customized from 3mm to 980mm. ECN000-07P-17S with solid inner bore,integrated 3 rings 200A,4 rings 30A & communication signal.The working temperature is from -20°C~ +80°C.working speed 0~250rpm.Waterproof grade also can choose from IP65,IP67,IP68 or more higher.The design concept base on the carbon brush working environment to compact the size and provides maintenance window.Any special requirments also can be customized, please contact with our team in anytime.It widely be used in ship machinery,engineering machinery,port machinery,offshore crane,cable reel,propeller,as well as drilling platform etc,.
Features
Applications
Optional
Voltage
Current rating
Signal type
Circuit number
Protection grade
Cable length
Product details
| ECN000-07P-17S Specification | |
| Circuits | 3*200A,4*30A,17*signal |
| Voltage | 0-380VAC |
| Electrical noise | ≤70mΩ (50rpm) |
| Dielectric strength | ≥500V@50Hz |
| Insulation resistance | ≥500MΩ@500VDC |
| Contact material | Precious metal |
| Operating speed | 0~250rpm |
| Operating temperature | -20°C~+80°C |
| Housing material | Aluminium alloy |
| IP protection grade | IP51 |
Outline drawing
Our Service
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.
FAQ
1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.
2. How long have we been in the business?
CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.
3. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.
4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.
5. Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
