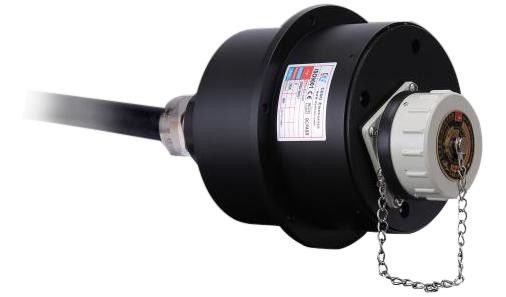

Custom Stainless Steel 50RPM IP66 Waterproof Slip Ring

Custom Stainless Steel 50RPM IP66 Waterproof Slip Ring

  • Custom Stainless Steel 50RPM IP66 Waterproof Slip Ring
Custom Stainless Steel 50RPM IP66 Waterproof Slip Ring
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN000-02P-04S-02F- IP66
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Current: 2*2A,2*20mA,2*Fiber Optic Protection Grade: IP66
Contact Material: Precious Metal Housing Material: Aluminium Alloy ,stainless Steel
Fiber Type: SM & MM Wave Length: 1310/1550 Nm (SM) 850/1310 Nm (SM)
High Light:

IP66 Waterproof Slip Ring

,

Stainless Steel Waterproof Slip Ring

,

50RPM Custom Slip Ring

Stainless Steel 50rpm Waterproof IP66 Customized Slip Ring



Waterproof IP66 Slip Ring with power,signal,2 channles fiber optic ,used for Drilling platform,Oil well,Aluminium alloy housing


This is a customized slip ring with power ,signal ,fiber optical ,it’s also a waterproof slip rings.designed specifically for underwater operation and waterproof work .according to working environment, the waterproof slip ring could be divided into multiple protection grade, such as IP65,IP66,IP67,IP68 and so on.



Stable performance and low torque ,working temperature is -20°C~ +80°C.Any special request please contact with CENO,we will provide the best solution.



Specification



ECN000-02P-04S-02F- IP66
Circuits & Current 2*2A,2*20mA,2*Fiber optic
Voltage

500VAC (power)

24VDC (signal)

Electrical noise Max 30mΩ (50rpm)
Dielectric strength

≥1500V@50Hz (power)

≥300V@50Hz (signal)

Insulation resistance

≥500MΩ@500VDC (power)

≥100MΩ@100VDC (signal)

Operating speed 0-50 rpm
Contact material Precious metal
Housing material Aluminium alloy ,stainless steel
IP protection grade IP66
Fiber channels 2 channels (SC connector)
Fiber type SM & MM
Wave length

1310/1550 nm (SM)

850/1310 nm (SM)



IP Protection reach to IP68





Features

  • IP65,IP66,IP67,IP68 protection grade optional
  • Precious contacts
  • Long service life
  • Integrate 2 Fiber Optic
  • Maintenance-free
  • Easy to install









Applications

  • Filling machine
  • Drilling platform
  • Oil well
  • Ship offshore equipment
  • Radar system
  • Industrial automation equipment
  • Medical equipment











Optional

  • Through hole size
  • Current rating
  • Signal integrated
  • IP protection grade
  • Contacts material
  • Cable length




Outline Drawing


Custom Stainless Steel 50RPM IP66 Waterproof Slip Ring 0




Our Service

1. Reply inquiry in 24 hours.

2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

3. Answer your question detailed.

4. Solved the problem with you during using our products.

5. Samples will be offered to you for our future cooperation.



FAQ

1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.



2. How long have we been in the business?

CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.



3. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.



4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.



5. Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
