| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN000-03P4 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 1000pcs per month |
| Current: | 3 Circuit * 20A | Rating Voltage: | 220VAC |
|---|---|---|---|
| Working Speed: | 0~1500rpm | Contact Material: | Precious Material |
| Housing Material: | Aluminum Alloy Sandblasting Oxide Black | Working Temperature: | -20℃~+60℃ |
| High Light: | 20A High Speed Slip Ring,1500rpm High Speed Slip Ring,sandblasting Housing High Speed Slip Ring |
||

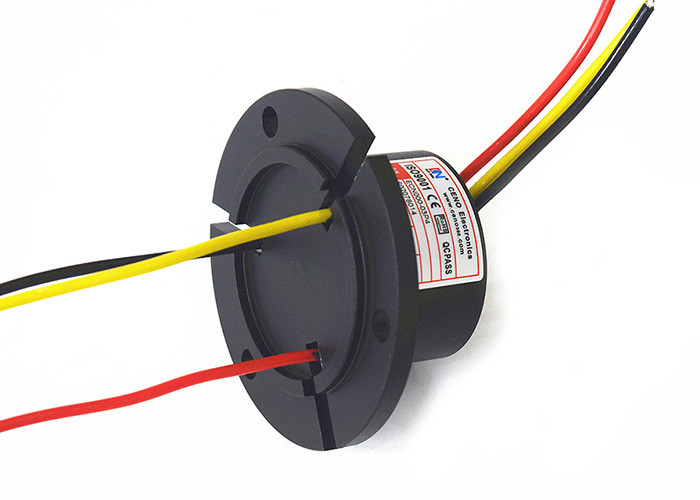

Low fluctuation High Speed 1500rpm Slip Rings customized 3 circuit * 20A
CENO design this High Speed Slip Rings for our customer as their special request, and the rotating speed can be up to 1500rpm, compare with common industry Slip Ring, High speed slip ring help client to increase production efficiency with safe and stable operation. It’s used on machinery manufacture.
CENO also provide different solutions with customer’s different requests, Options include IP protection grade,operating speed or Circuit number and so on.
Features
High speed up to1500rpm
Running stably
360 continuous rotation
Low Res fluctuation
Applications
Test equipment
Aeronautical applications
Automation
Machinery equipment
Optional
IP protection grade
Working speed
Material
Circuit number
Specification
| ECN000-03P4 | Specification |
| Circuit & Current | 3 circuit * 20A |
| Rating voltage | 220VAC |
| Dielectric strength | ≥ 500V@50Hz |
| Insulation Resistance | 500MΩ@500VDC |
| Contact resistance fluctuation | ≤70mΩ(50rpm) |
| Working temperature | -20~+60℃ |
| Working speed | 0~1500rpm |
| Contact material | Precious material |
| Housing material | Aluminum alloy sandblasting oxide black |
| Protection grade | IP51 |
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
Contact Person: Lam
Tel: +8615767660191
