| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN025-18P3-IP65 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 1000pcs per month |
| Circuit & Current: | 18*15A | Rating Voltage: | 0~380VAC |
|---|---|---|---|
| Contact Resistance Fluctuation: | ≤30mΩ(50rpm) | Working Speed: | 0~300rpm |
| Inner Diameter: | Ø25.4 | Housing Material: | Aluminum Alloy Sandblasting Oxide Black |
| Protection Grade: | IP65 | ||
| High Light: | IP65 through hole slip ring,through hole slip ring 380VAC,Waterproof through hole slip ring |
||

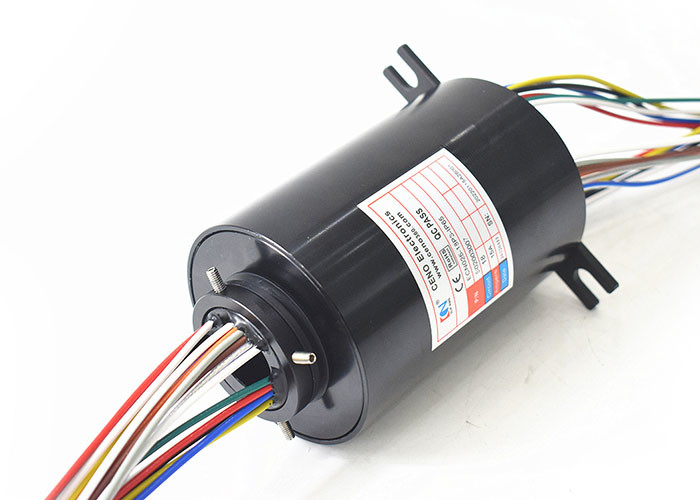

IP65 Waterproof Slip Rings hollow through hole low resistance fluctuation 380V
Waterproof slip ring is one of CENO's many functional slip rings. Due to the different application environment for different waterproof grade requirements, we often design the waterproof slip rings grade is IP65, IP66, IP67, IP68 under normal circumstances.
The material and sealing method chosen for slip ring design are related to the liquid composition in the operating environment of the slip ring, such as pharmaceutical liquid, food liquid or seawater, etc. So that it Often used in wet, corrosive, underwater environment.
Features
• Protection grade up to IP65, IP66, IP67, IP68
• Select corrosion-resistant material
• Multiple sealing method
Applications
• Marine automation equipment
• Foodstuff processing machinery
• Mine working equipment
• Fishery industry
Optional
• Circuit & Current
• Housing & Contact material
• IP protection grade
• Signal type
Outline drawing
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Why with CENO
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
