| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | SCN012-04P |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Crate/As request |
| Delivery Time: | 2 weeks |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 1000pcs per month |
| Circuit Number: | 4*2Amp | Voltage: | 10VAC |
|---|---|---|---|
| Electrical Noise: | Max 10mΩ | IP Grade: | IP00 |
| Operating Speed: | 0~300 Rpm | Working Life: | 10 Million Rotation |
| Contact Material: | Precious Metal / Silver | Inner Diameter: | 12.7 Mm |
| High Light: | Hollow Shaft Separate Slip Ring,12.7mm Hollow Shaft Slip Ring,300rpm Hollow Shaft Slip Ring |
||

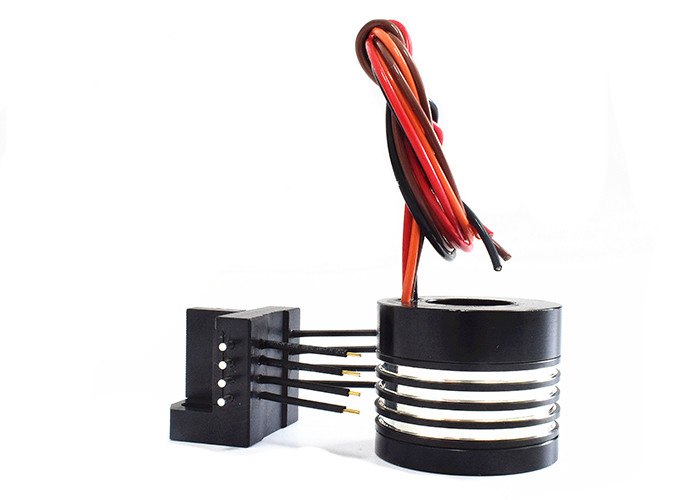

12.7mm Separate hollow shaft slip ring with 4circuits 2Amp & 300rpm low noise
This is one of separate slip ring from CENO company has through hole 12.7mm. It is different from the traditional ECN series hollow shaft slip ring. There is no housing protection and stator part is separated from the entire slip ring. Clearly to see the brushes and rings from the appearance. The configuration is easy to be observed the wearing status on each ring and brushes. It makes maintenance becomes convenient.
Specification
|
SCN012-04P |
|
| Circuits & Current | 4x 2Amp |
| Voltage | 0~10VAC |
| Electrical noise | Max 10mΩ |
| Dielectric strength | ≥ 500V@50Hz |
| Insulation resistance | ≥ 100MΩ@500VDC |
| Operating speed | 0-300 rpm |
| Contact material | Precious metal / Silver |
| Housing material | N/A |
| Working temperature | -20℃~+60℃ |
| IP protection grade | IP00 |
| Through hole size | 12.7mm |
| Working life | 10 million rotation |
Features
• Mounting freely
• ECN series similar
• Separate stator and rotor
Applications
• Testing instrument
• Automation system
• Robotics
Optional
• Outer shape
• Contact material
• Through hole size
Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
