| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | SCN060-04P3 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Crate/As request |
| Delivery Time: | 2 weeks |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 1000pcs per month |
| Circuit Number: | 4*15Amp | Voltage: | 380VAC |
|---|---|---|---|
| Electrical Noise: | 70mΩ (50rpm) | Operating Speed: | 1 Rpm |
| Contact Material: | Precious Metal | Through Hole Material: | POM |
| Inner Diameter: | Ø60mm | Net Weight: | 3kg |
| High Light: | POM Separate Slip Ring,60mm Separate Slip Ring,380VAC Separate Slip Ring |
||

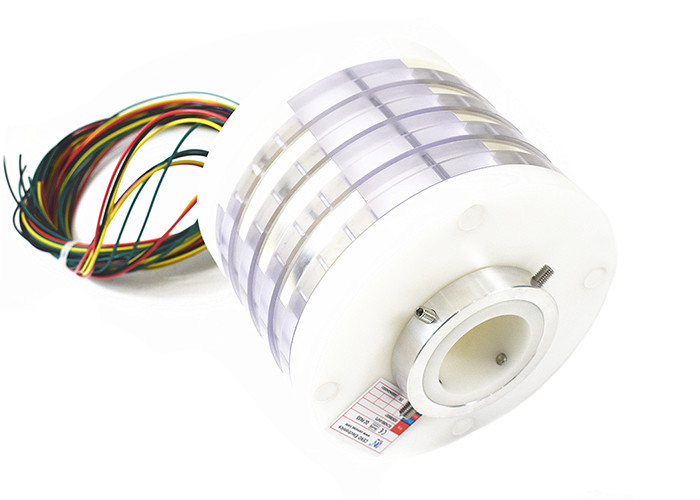

Separate Slip Ring With 4 Circuits 15Amp inner diameter Ø60mm POM material
SCN060-04P3 is a separate slip ring from CENO electrical company, it is different from our traditional industry slip ring for the easy installation feature, most of the our customer request bulk delivery if they want separate slip ring. There are 4 rings for 15A, contact material is precious metal, the through hole material is POM, flange installation and more optional.,CENO is keeping innovation on slip ring research and development technology. Please contact us freely if you have any more special request.
Specification
SCN060-04P3 | |
| Current & Circuits | 4*15A |
| Rating Voltage | 380VAC |
| Dielectric Strength | 1000VAC@50Hz |
| Insulation Resistance | 500MΩ@100VDC |
| Lead Wire Size | AWG14# Tin coated Teflon® UL |
| Lead Wire length | Rotor: 2000mm |
| Contact resistance fluctuation | ≤70mΩ (50rpm) |
| Working speed | 1 rpm |
| Contact material | Precious metal |
| Working temperature | -20℃~+60℃ |
| Installation way | Flange installation |
| Inner Diameter | Ø60mm |
| Through hole material | POM |
| Net weight | 3kg |
Features
• Mounting freely
• ECN series similar
• Separate stator and rotor
Applications
• Testing instrument
• Automation system
• Robotics
Optional
• Outer shape
• Contact material
• Through hole size
Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
