| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ACN22-18-04P-06S |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 500pcs per month |
| Circuits: | 4*6A, 6*2Signal | Rating Voltage: | 0~240VAC/DC |
|---|---|---|---|
| Working Speed: | 0~300 Rpm | Contact Material: | Precious Metals |
| Housing Material: | Engineering Plastic | Electrical Noise: | ≤15mΩ |
| Working Temperature: | -20°C~+60°C | Lead Wire Length: | Rotor : 1000 ±15mm; Stator: 250 ±5mm |
| High Light: | 6X2A Capsule Slip Ring,300rpm Compact Slip Ring,Compact Capsule Slip Ring |
||

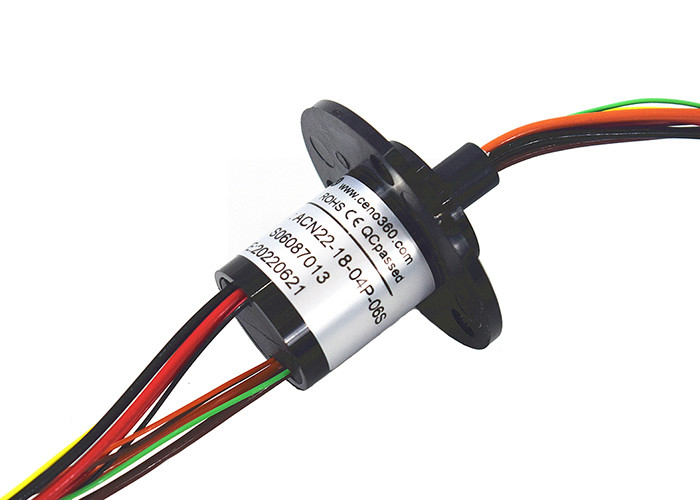

Capsule Slip Ring with 4X6A & 6X2A 300rpm low electrical noise 15mΩ compact size
ACN22-18-04P-06S is a capsule slip ring with 4 wires of 6A electrical power and 4 circuits of 2A signals from CENO electrical company. For it's special application, CENO choose the corresponding materials that the housing material is engineering plastic and the contact material is precious metal for customer's using environment. It can be working normally in the temperature from -20°C~+60°C, humidity is below 60%, it can be working stably with low electrical noise is low than 15mΩ and the speed range 0 ~ 300 rpm. Normally applied in High speed turntable, Special security equipment,Resistance cutting machine etc.
Specification
|
ACN22-18-04P-06S |
|
| Current & Circuits | 4 Circuits *6A; 6 Circuits *2A |
| Rating Voltage | 0~240VAC/DC |
| Dielectric strength |
≥500VAC@50Hz(P) ≥100VAC@50Hz(S) |
| Isolation resistance |
≥100MQ@500VDC(P) ≥10MQ@100VDC(S) |
| Electrical Noise | ≤15mΩ |
| Lead wire length |
Rotor : 1000 ±15mm Stator: 250 ±5mm |
| Operating speed | 0~300rpm |
| Contact material | Precious metal |
| Housing material | Engineering plastic |
| Working temperature | -20°C~+60°C |
| Working humidity | ≤ 60% |
Features
Applications
Optional
Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
