| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | BHCN-C-04P |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons/As request |
| Delivery Time: | 1 weeks |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 1000pcs per month |
| Rating Voltage: | 4 Circuits * 500A | Operating Speed: | 0-60rpm |
|---|---|---|---|
| Contact Material: | Copper Graphite | Housing Material: | Aluminum Alloy + Stainless Steel |
| IP Degree: | IP64 | Application: | Marine Crane,Propulsion,Engineering Machinery |
| Working Temperature: | -30°C~+70°C | Contact Resistance Fluctuation: | ≤10mΩ |
| High Light: | 60rpm High Current Slip Ring,IP64 High Current Slip Ring,Al Alloy Housing Electrical Slip Ring |
||

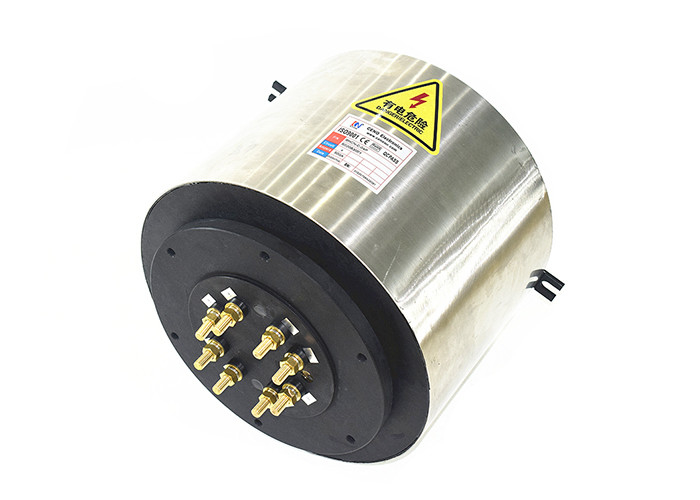

IP64 High Current Slip Ring with 60rpm 4 x 500Amp low electrical noise 10mΩ
BHCN-C-04P is a high current slip ring with 4 circuits of 500A in CENO electrical company, we usually name is carbon brush slip ring or large current slip ring too. This serious large currents slip ring are developed for demanding requirements and rugged environments. Typical application include rotating working plat, ship propulsion appliances, large radar, packing machine or Hoisting machinery etc. The current is optional as 50A, 100A, 250A, 500A, 1000A, 3000A or even higher in many specification. For more information about how CENO’s large current slip rings can fit your specific application, contact CENO electrical company directly.
Features
Applications
Optional
Product details
| BHCN-C-04P | |
| Current & Circuits | 4 Circuits * 500A |
| Rating Voltage | 0~380VAC/DC |
| Dielectric strength | ≥1500VAC@60Hz |
| Isolation resistance | ≥500MΩ@500VDC(P) |
| Contact resistance fluctuation | ≤10mΩ |
| Lead wire length |
Rotor: M12 binding post Stator:M12 wiring |
| Operating speed | 0~60rpm |
| Contact material | Copper graphite |
| Housing material | Aluminum alloy + Stainless steel |
| Working temperature | -30°C~+70°C |
| Working humidity | 90% |
| Protect grade | IP64 |
Outline drawing
Our Service
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.
FAQ
1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.
2. How long have we been in the business?
CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.
3. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.
4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.
5. Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
