| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,UL,ISO9001 |
| Model Number: | ACN22-06P-01U2-01U3 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | Off the shelf |
| Payment Terms: | T/T,Paypal,Western Union, L/C |
| Supply Ability: | 10000pcs month |
| Circuit Number & Current: | 6 Circuits * 2A, 1 Circuits * USB2.0, 1 Circuits * USB3.0 | Voltage: | 0~240 VAC/DC |
|---|---|---|---|
| Protection Grade: | IP40 | Operating Humidity: | 60%RH |
| Working Speed: | 0~300rpm | Working Temperature: | -20~+60℃ |
| Contact Material: | Gold To Gold | Housing Material: | Engineering Plastic |
| High Light: | Capsule Slip Ring 300rpm,Engineering Plastic Capsule Slip Ring,IP40 Capsule Usb Slip Ring |
||

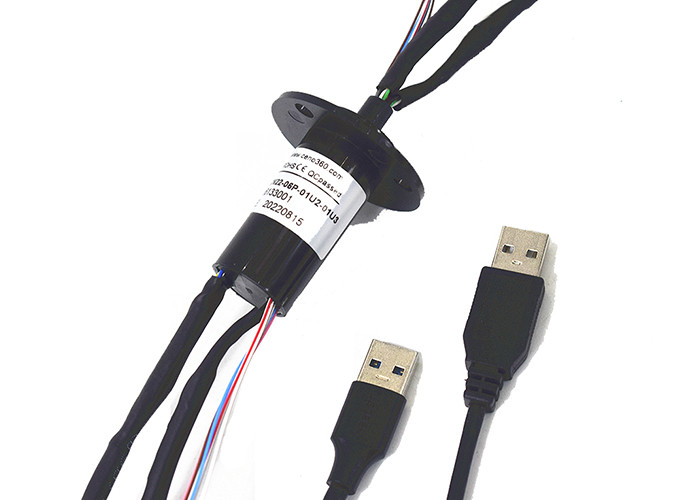

Capsule Slip Ring 2 USB operation speed 300rpm engineering plastic material
ACN22-06P-01U2-01U3 is a capsule USB slip ring from CENO electrical company, it’s usually called Capsule & Miniature slip ring too for its’ compact size. It can transmit 1circuits for USB2.0, 1circuit for USB3.0 and combine 6 circuits for 2A stably. Capsule slip ring mainly applied in Motion simulator, Automation equipment, Process control equipment, Packaging machine, Medical equipment etc.,
Features
• Stable data transmission,no packet loss ,low return loss,
• Multi group with Ethernet
• Compact structure
• Low resistance
Applications
• Tripod head
• Serial communication
• Industrial automatic control
Optional
• Circuit number & current
• Contact material
• Outer diameter
• IP protection grade
Specification
|
ACN22-06P-01U2-01U3 |
|
| Current & Circuits |
6 circuits * 2A 1 circuits * USB2.0 1 circuits * USB3.0 |
| Rating Voltage | 0~240VAC/DC |
| Dielectric strength |
≥500VAC@50Hz(P) ≥100VAC@50Hz(S) |
| Isolation resistance |
≥100MQ@200VDC(P) ≥10MQ@100VDC(S) |
| Electrical Noise | ≤35mΩ |
| Lead wire length |
Rotor end: 300/250 ±10mm Stator end: 300/250 ±10mm |
| Operating speed | 0~300rpm |
| Contact material | Gold to Gold |
| Housing material | Engineering plastic |
| Working temperature | -20°C~+60°C |
| Working humidity | 60% below |
| IP protection grade | IP40 |
Outline drawing
Our Service
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.
FAQ
1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.
2. How long have we been in the business?
CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.
3. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.
4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.
5. Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
