12 Circuits 2A Capsule Slip Ring With RF Coaxial DC-3GHz Low Noise

12 Circuits 2A Capsule Slip Ring With RF Coaxial DC-3GHz Low Noise

  • 12 Circuits 2A Capsule Slip Ring With RF Coaxial DC-3GHz Low Noise
12 Circuits 2A Capsule Slip Ring With RF Coaxial DC-3GHz Low Noise
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,UL,ISO9001
Model Number: ACN24-1R12P1
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton
Delivery Time: Off the shelf
Payment Terms: T/T,Paypal,Western Union, L/C
Supply Ability: 10000pcs month
Contact Now
Detailed Product Description
Circuit Number & Current: 12 Circuits * 2A Voltage: 0~240 VAC/DC
OD: Φ24.8×39.8mm Protection Grade: IP40
Operating Humidity: 60%RH Working Speed: 0~80rpm
Working Temperature: -20℃~+60℃ Contact & Housing Material: Gold To Gold; Aluminum Alloy
High Light:

12 circuits Capsule Slip Ring

,

RF coaxial Capsule Slip Ring

,

DC-3GHz RF Slip Ring

Capsule Slip Ring with RF coaxial DC-3GHz low noise 12 circuits of 2A

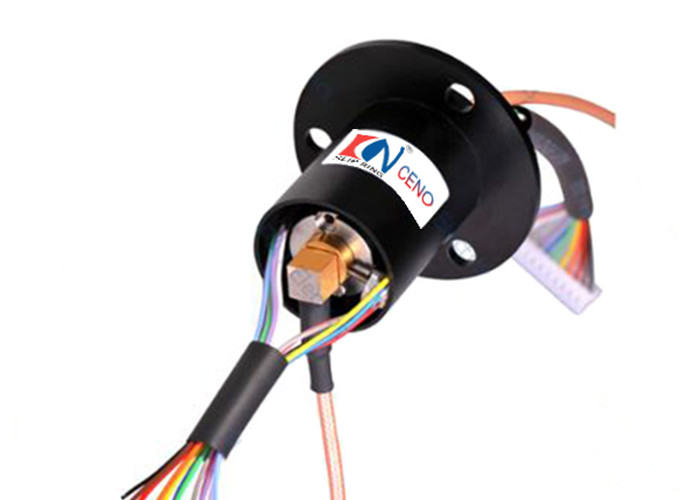

ACN24-1R12P1 is an integrated slip ring with capsule and radio frequency rotary joint from CENO electronics company. There are 12 circuits for 2A with the rating voltage 240VAC/DC and the external diameter is 24.8mm, it can work stable at the speed of 300rpm within the temperature from -20°C to +60°C. Most of the parameter is optional, for example the service life, torque, rotating speed, protection grade diameter, or materials. This radio frequency rotary joint is especially fit for the machinery witch transmit week control signals, usually used for the opto electronic pod, tanks and armoured vehicles or High definition video.



Features

  • Most parameter is optional
  • Capsule slip ring with low torque & combined electrical and data signals



Applications

  • Military equipment with anti-strong shock
  • Photo electronic pod
  • High definition video



Optional

  •  Circuit number & Current
  •  Working speed & IP Grade
  •  Operating temperature
  •  Frequency range





Specification



ACN24-1R12P1

Specification
Current & Circuits 12 circuits * 2A
Rating Voltage 0~240VAC/DC
Dielectric strength ≥500VAC@50Hz(P); ≥100VAC@50Hz (S)
Isolation resistance ≥100MQ@500VDC(P); ≥10MQ@100VDC(S)
Dynamic resistance fluctuation value ≤35mΩ
Operating speed 0~80rpm
Contact material Gold to Gold
Housing material Aluminum Alloy
Working temperature -20°C~+60°C
Working humidity 60% below
IP protection grade IP40
Coaxial Parameter
Frequency range DC-3GHz / DC-1.5GHz
Dynamic resistance fluctuation value < 15mΩ
Specific Impedance 50Ω/ 75Ω
Insertion Loss <1.5dB / <3dB
Insertion Loss wow

< 0.1dB

VSWR < 1.6
VSWR - WOW < 0.1
Insertion Loss WOW < 1°
Housing Material Brass
Contact Material Precious Metal
Cable size RG316 / AWG28#
Cable length Rotor:250±5mm; Stator:250±5mm





Outline drawing
