| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,UL,ISO9001 |
| Model Number: | ACN24-1R30P1 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | Off the shelf |
| Payment Terms: | T/T,Paypal,Western Union, L/C |
| Supply Ability: | 10000pcs month |
| Circuit Number & Current: | 30 Circuits * 2A | Voltage: | 0~240 VAC/DC |
|---|---|---|---|
| OD: | Φ24.8×65.5mm | Protection Grade: | IP40 |
| Operating Humidity: | 60%RH | Working Speed: | 0~80rpm |
| Working Temperature: | -40℃~+80℃ | Contact & Housing Material: | Gold To Gold; Aluminum Alloy |
| Frequency Range: | DC-3GHz / DC-1.5GHz | Insertion Loss: | <1.5dB / < 3dB |
| High Light: | RF Coaxial Slip Ring,Campact coaxial slip ring,Capsule RF slip ring |
||
Capsule slip ring with campact design and RF coaxial smooth running low noise

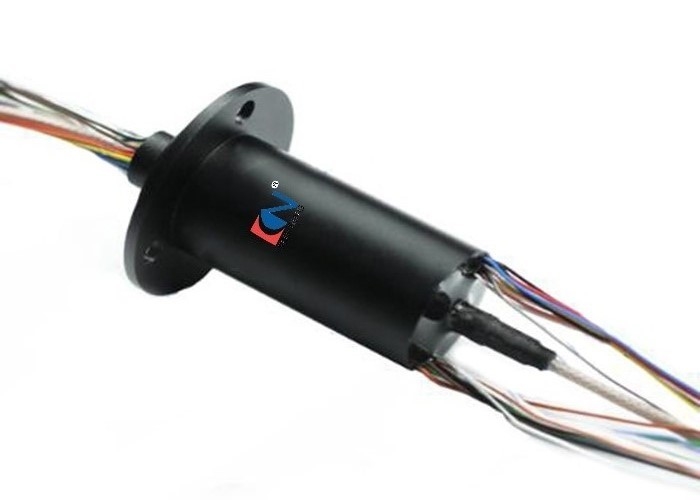

ACN24-1R30P1 is an integrated capsule slip ring with external diameter of 24.8mm and length of 65.5mm from CENO company. It can be divided into two kinds, single channel & multi channel high frequency two slip ring. There are 30 circuits for 2A with rating voltage 0-240VAC/DC, 1channel for high-frequency coaxial connector and it can be made into elbow or straight head to fit in different platform.due to it’s compact design and low torque, the capsule slip ring mainly used in High definition video surveillance, process control system, video monitoring system or Radar antenna.
Features
Applications
Optional
Specification
| ACN24-1R30P1 | Specification |
| Current & Circuits | 30 circuits * 2A |
| Rating Voltage | 0~240VAC/DC |
| Dielectric strength | ≥500VAC@50Hz (P) |
| Isolation resistance | ≥100MQ@500VDC (P) |
| Dynamic resistance fluctuation value | ≤15mΩ |
| Working speed | 80rpm |
| Contact material | Gold to Gold |
| Housing material | Aluminum Alloy |
| Cable size | RG316 |
| Lead wire length | Stator:250±5mm; Rotor:250±5mm |
| Housing Material | Brass |
| Contact Material | Precious Metal |
| Working temperature | -40°C~+80°C |
| Working humidity | 60%below |
| IP protection grade | IP40 |
| Coaxial Parameter | |
| Frequency range | DC-3GHz / DC-1.5GHz |
| VSWR,max | 1.6@0-3GHz |
| Specific impedance | 50Ω / 75Ω |
| Insertion Loss | <1.5dB / < 3dB |
| Insertion Loss wow | <0.1dB |
| VSWR | <1.6 |
| VSWR-WOW | <0.1 |
| Insertion Loss - wow | ＜1° |
Outline drawing
