| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | SCN-C-035-06P2 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 1000pcs per month |
| Current: | 6 Circuits * 10A | Rating Voltage: | 415VAC |
|---|---|---|---|
| Working Speed: | 0~5000rpm | Contact Material: | Copper Graphite |
| Working Humidity: | 60% Below | Working Temperature: | -20℃~+60℃ |
| Lead Wire Size: | AWG17# Tin Coated Teflon ® UL 1.0mm² | Install Way: | The Rotor Installed On The Spindle By Screws |
| Inner Diameter: | Ø35mm | IP Protection Grade: | IP51 |
| High Light: | 5000rpm High speed slip ring,Carbon Brush High speed slip ring,carbon brush slip ring IP51 |
||

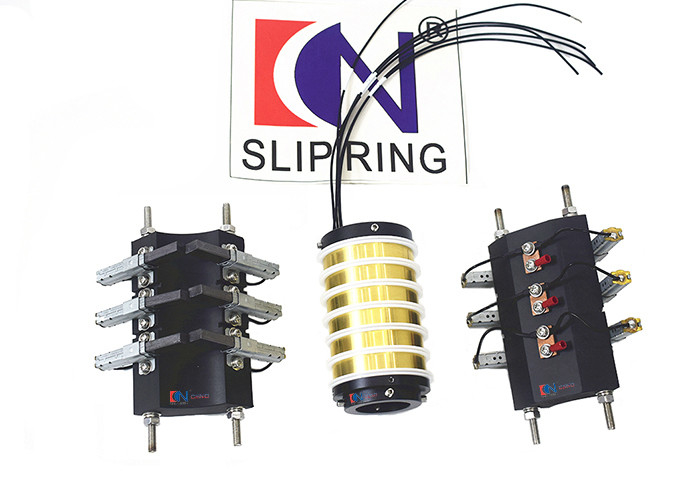

High speed slip ring with 5000rpm carbon brush inner bore Ø35mm IP51
SCN-C-035-06P2 is a high speed carbon brush slip ring from CENO company. This high speed slip ring transmit power and signals stably with the speed of 5000rpm, the operation speed can be designed up to 10000rpm as different application scenarios and optional. There are 6 circuits for 10A power with the rating voltage 415VAC. Due to it’s low torque, low consumption, high stable performance and long service life, it mainly used on the Automatic machine or Test facilities and instruments, such as High-speed train detect equipment, Eddy current testing machinery, or Non-destructive detector etc.
Features
Applications
Optional
Specification
| SCN-C-035-06P2 | Specification |
| Current & Circuits | 6 circuits * 10A |
| Rating Voltage | 415VAC |
| Dielectric strength | ≥1500VAC@50Hz (P) |
| Isolation resistance | ≥500MQ@500VDC |
| Lead wire length |
Rotor wire : 200mm Stator wire : 200mm |
| Operating speed | 0~5000rpm |
| Contact material | Copper graphite |
| Working temperature | -20°C~+60°C |
| Working humidity | 60% below |
| IP protection grade | IP51 |
| Inner diameter | Ø35mm |
| Lead wire size | AWG17# Tin coated Teflon ® UL 1.0mm² |
| Install way | The Rotor installed on the spindle by screws |
| Service life | 8395h |
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
