Od 24.8mm Compact Slip Ring Low Electric Noise 6ckt*2a

Od 24.8mm Compact Slip Ring Low Electric Noise 6ckt*2a

  • Od 24.8mm Compact Slip Ring Low Electric Noise 6ckt*2a
Od 24.8mm Compact Slip Ring Low Electric Noise 6ckt*2a
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,UL,ISO9001
Model Number: ACN0624T-06
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton
Delivery Time: Off the shelf
Payment Terms: T/T,Paypal,Western Union, L/C
Supply Ability: 10000pcs month
Contact Now
Detailed Product Description
Circuit Number & Current: 6 CKT * 2A Voltage: 0~240 VAC/DC
Protection Grade: IP40 Operating Humidity: 60%RH
Working Speed: 0~300rpm Working Temperature: -20℃~+60℃
Contact & Housing Material: Gold To Gold Housing Material: Aluminum Alloy
ID: Ø6.4mm OD: Ø24.8mm
High Light:

od 24.8mm compact slip ring

,

low electric noise compact slip ring

,

6ckt*2a capsule slip ring

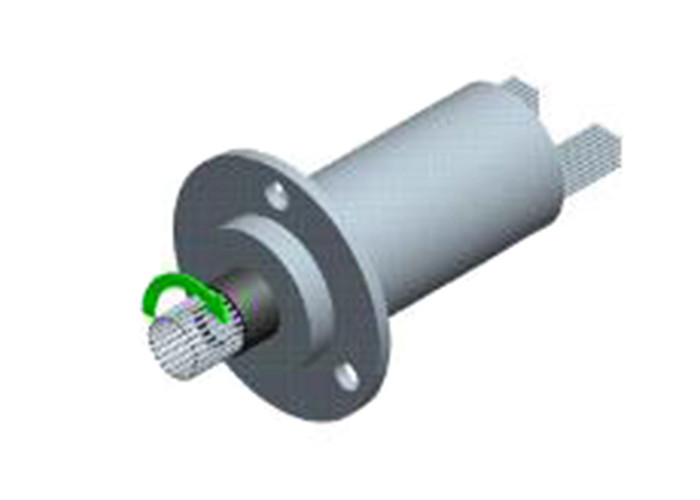

Capsule slip ring with OD Ø24.8mm low electric noise 6ckt*2A speed 300rpm



ACN0622T-06 is an integrated capsule slip ring with external diameter of 24.8mm and length of 32.5mm from CENO company. There are 6 circuits for 2A with rating voltage 0-240VAC/DC, it can be working stably at speed of 0~300rpm within the temperature from -20°C to +60°C in normal environment. Due to it’s small compact structure and optional protect grade IP51 to IP68, the capsule slip ring is always used in electromechanical system which requires continuous rotation,unrestrained transfer data or power from a stationary to a rotating structure, such as Automatic machine, tripod head measuring instrument, high speed ball camera or medical equipment.



Features

  • Low torque minimizes system torque budget
  • Smooth running with low electrical noise
  • Compact design to fit in the most demanding space



Applications

  • Manufacture and process control instrument
  • Electric test instrument
  • A key apparatus of Various precision rotary worktable



Optional

  • Circuit number & Current
  • Working speed
  • Protection grade
  • External & inner diameter
  • Operating temperature



Specification



ACN0624T-06 Specification
Current & Circuits 6 CKT * 2A
Rating Voltage 0~240VAC/DC
Dielectric strength ≥500VAC@50Hz(P)
Isolation resistance ≥100MΩ@500VDC(P)
Electrical Noise ≤35mΩ
Lead wire length

Rotor wire : 250±5mm

Stator wire : 250±5mm

Operating speed 0~300rpm
Contact material Gold to Gold
Housing material Aluminum alloy
Working temperature -20°C~+60°C
Working humidity 60% below
IP protection grade IP40
Inner diameter Ø6.4mm
External diameter Ø24.8mm
Lead wire size AWG26# Tin coated Teflon®UL





Outline drawing

Od 24.8mm Compact Slip Ring Low Electric Noise 6ckt*2a 0





Our Service

1. Reply inquiry in 24 hours.

2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

3. Answer your question detailed.

4. Solved the problem with you during using our products.

5. Samples will be offered to you for our future cooperation.



FAQ



1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.



2. How long have we been in the business?

CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.



3. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.



4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.



5. Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.



Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.



Certification

ISO9001,CE,RoHS,UL,Explosion-proof



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.



Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
