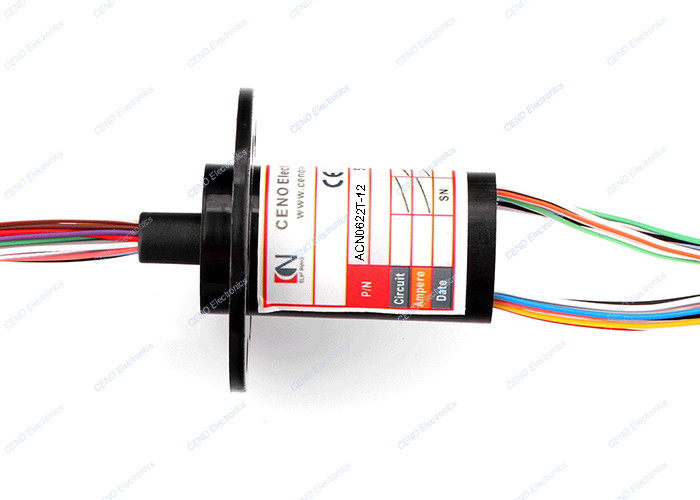

Aluminum Alloy IP40 Capsule Slip Ring On Serial Communication

Aluminum Alloy IP40 Capsule Slip Ring On Serial Communication

  • Aluminum Alloy IP40 Capsule Slip Ring On Serial Communication
Aluminum Alloy IP40 Capsule Slip Ring On Serial Communication
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,UL,ISO9001
Model Number: ACN0624T-12
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton
Delivery Time: Off the shelf
Payment Terms: T/T,Paypal,Western Union, L/C
Supply Ability: 10000pcs month
Contact Now
Detailed Product Description
Circuit Number & Current: 12 CKT * 2A Voltage: 0~240 VAC/DC
Protection Grade: IP40 Operating Humidity: 60%RH
Working Speed: 0~300rpm Working Temperature: -20℃~+60℃
Contact & Housing Material: Gold To Gold Housing Material: Aluminum Alloy
ID: Ø6.4mm OD: Ø24.8mm
High Light:

ip 40 capsule slip ring

,

serial communication capsule slip ring

,

aluminum alloy slip ring capsule

Capsule slip ring with compact structure low electric noise 12ckt*2A speed 300rpm



ACN0624T-12 is an integrated capsule slip ring with external diameter of 24.8mm and length of 39.8mm from CENO company. There are 12 circuits for 2A with rating voltage 0-240VAC/DC, it can improve electromechanical capability, eliminate possible damage, simplify system design when rotation, based on long life, smooth running, compact design and high protection features, it’s mainly used on serial communication, automatic machine, tripod head measuring instrument or process control equipment.



Features

  • Capsule slip ring with compact design fit in demanding space
  • Stable performance and ageing resistance
  • Most of the parameter is optional



Applications

  • Serial communication
  • Airborne equipment
  • Tripod head measuring
  • Process control equipment
  • Automatic machine



Optional

  • Circuit number & Current
  • Working speed & IP Grade
  • Inner or outer diameter
  • Contact or housing material
  • Operating temperature



Specification

ACN0624T-12 Specification
Current & Circuits 12 circuits * 2A
Rating Voltage 240VAC/DC
Dielectric strength ≥500VAC@50Hz(P)
Isolation resistance ≥100MΩ@500VDC(P)
Electrical Noise ≤ 35mΩ
Operating speed 0~300rpm
Contact material Gold to Gold
Housing material Aluminum Alloy
Lead wire length Stator:250±5mm; Rotor:250±5mm
Working temperature -20°C~+60°C
Working humidity 60% below
IP protection grade IP40







Outline drawing

Aluminum Alloy IP40 Capsule Slip Ring On Serial Communication 0





Our Service

1. Reply inquiry in 24 hours.

2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

3. Answer your question detailed.

4. Solved the problem with you during using our products.

5. Samples will be offered to you for our future cooperation.



FAQ



1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.



2. How long have we been in the business?

CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.



3. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.



4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.



5. Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.



Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.



Certification

ISO9001,CE,RoHS,UL,Explosion-proof



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.



Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
