| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN038-03P2-GS |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 1000pcs per month |
| Current & Circuits: | 3 Circuits * 10A | Rating Voltage: | 0~380 VAC/VDC |
|---|---|---|---|
| Dielectric Strength: | ≥1000VAC@50Hz | Isolation Resistance: | ≥500MΩ@500VDC |
| Electrical Noise: | ≤70mΩ (50rpm) | Operating Speed: | 0~1000rpm |
| Contact Material: | Precious Metals | Housing Material: | Aluminum Alloy |
| Working Temperature: | -20°C~+60°C | Working Humidity: | Max60% |
| IP Protection Grade: | IP51 | Through Hole Size: | Ø38.1mm |
| Lead Wire Size: | AWG17# Tin Coated Teflon® UL | Lead Wire Length: | Rotor : 300mm Stator : 300mm |
| High Light: | High Speed Slip Ring 1000rpm,Precious Metals High Speed Slip Ring,10A electric slip ring |
||

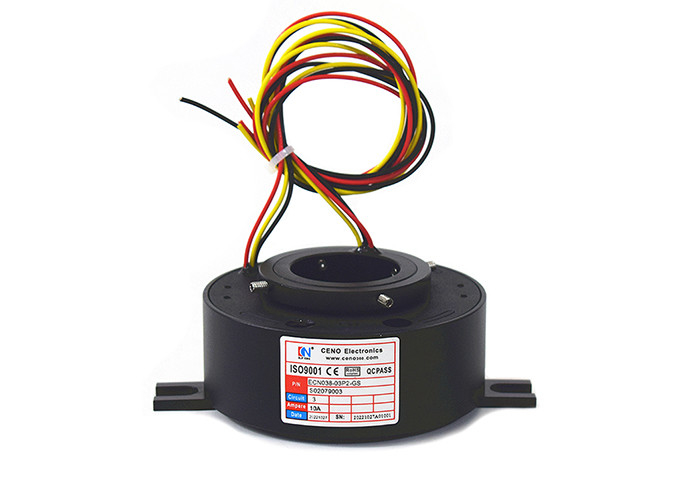

Through hole high speed 1000rpm electric slip ring with precious metals
ECN038-03P2-GS is a hollow shaft electrical slip ring with high speed 1000rpm from CENO electronics, it’s often designed for automatic machine, test facilities and instruments, inspection equipment or high speed train detect equipment. CENO high-speed slip ring adopt advanced technology to ensure the high concentricity of the slip ring, and the contact between the station and the rotor adopts special structure treatment to fully ensure the stability of the performance at high speed.
Features
Applications
Optional
Specification
|
ECN038-03P2-GS |
Specification |
| Current & Circuits | 3 circuits * 10A |
| Rating Voltage | 0~380 VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC |
| Electrical noise | ≤70mΩ (50rpm) |
| Operating speed | 0~1000rpm |
| Contact material | Precious metals |
| Housing material | Aluminum alloy |
| Working temperature | -20°C~+60°C |
| Working humidity | Max60% |
| IP protection grade | IP51 |
| Through hole size | Ø38.1mm |
| Lead wire size | AWG17# Tin coated Teflon® UL |
| Lead wire length |
Rotor : 300mm Stator : 300mm |
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
