Extremely Thin Pancake Slip Ring With 1000M Ethernet Signal For Height Limit

Extremely Thin Pancake Slip Ring With 1000M Ethernet Signal For Height Limit

  • Extremely Thin Pancake Slip Ring With 1000M Ethernet Signal For Height Limit
Extremely Thin Pancake Slip Ring With 1000M Ethernet Signal For Height Limit
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,UL,ISO9001
Model Number: PCN012-06P1-04S-01EG
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 2 weeks
Payment Terms: T/T,Paypal,Western Union
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Current & Circuits: 6*5A; 4*Signal; 1channel*1000M Ethernet Rating Voltage: 0~220VAC/VDC
Dielectric Strength: ≥1500VAC@50Hz; ≥300VAC@50Hz Isolation Resistance: ≥500MΩ@500VDC;≥100MΩ@100VDC
Electrical Noise: ≤10mΩ (50rpm) Operating Speed: 0~300rpm
Contact Material: Precious Metal Housing Material: Aluminum Alloy
Working Temperature: -20°C~+60°C Working Humidity: 60%
IP Protection Grade: IP51 Through Hole Size: Ø12.7mm
Lead Wire Size: AWG22# Tin Coated Teflon®UL 4core Shielded Twisted Wire Cat5e Lead Wire Length: Rotor : 1000mm Stator : 1000mm
High Light:

Thin Pancake Slip Ring

,

1000M Ethernet Pancake Slip Ring

,

Height Limit Ethernet Slip Ring

Extremely Thin Pancake Slip Ring With 1000M Ethernet Signal For Height Limit

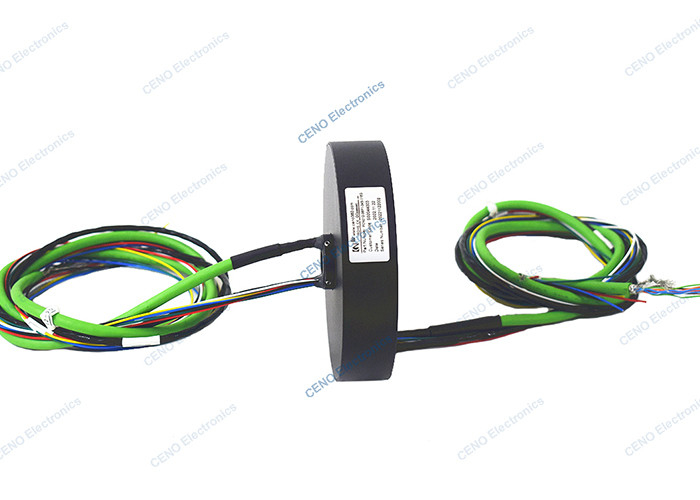

PCN012-06P1-04S-01EG is pancake slip ring with gigabit Ethernet signal for industry application from CENE Electronics, there are6 circuits for 5A electric power, 4 circuits for signal and 1 channel for 1000M Ethernet signal. Pancake slip ring is similar to the through hole slip ring and is specially used for the rotating system without enough height. Also called flat slip ring, flat disc electrical slip ring or platter slip ring. Due to it’s separate components or integrated assemblies and long working life, often apply to the Military equipment, Electric devices, Medical facility and Industrial machinery etc.





Features

  • Reliable contact between brush and ring
  • Flexible installation
  • Suitable for signal and power transfer of rotating devices or instrument
  • Compact size
  • Slim thickness
  • Economy cost



Typical application

  • Lamp lighting
  • Rotary stage
  • Rotary lamp box
  • Rail system
  • Automatic machine
  • Electric devices
  • Industrial machinery
  • Medical facility



Optional

  • Circuit number & Current
  • Working speed
  • Protection grade
  • Thickness







Specification

PCN012-06P1-04S-01EG

Specification
Current & Circuits 6circuits*5A; 4circuits*Signal; 1channel*1000M Ethernet
Rating Voltage 0~220VAC/VDC
Dielectric strength ≥1500VAC@50Hz; ≥300VAC@50Hz
Isolation resistance ≥500MΩ@500VDC;≥100MΩ@100VDC
Electrical noise ≤10mΩ (50rpm)
Operating speed 0~300rpm
Contact material Precious metal
Housing material Aluminum alloy
Working temperature -20°C~+60°C
Working humidity 60%
IP protection grade IP51
Through hole size Ø12.7mm
Lead wire size

AWG22# Tin coated Teflon®UL

4core shielded twisted wire

Cat5e

Lead wire length

Rotor : 1000mm

Stator : 1000mm








Outline drawing

Extremely Thin Pancake Slip Ring With 1000M Ethernet Signal For Height Limit 0





Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.





Certification

ISO9001,CE,RoHS,UL,Explosion-proof



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
