Slim Pancake Signal Slip Ring 254 Mm For Height Limited Space Application
  • Slim Pancake Signal Slip Ring 254 Mm For Height Limited Space Application
  • Slim Pancake Signal Slip Ring 254 Mm For Height Limited Space Application

Slim Pancake Signal Slip Ring 254 Mm For Height Limited Space Application

Place of Origin China
Brand Name CENO
Certification CE,RoHS,UL,ISO9001
Model Number PSCN254-06S
Product Details
Current & Circuits:
6circuits*0.5A
Rating Voltage:
0~220VAC/VDC
Dielectric Strength:
≥500VAC@50Hz
Isolation Resistance:
≥200MΩ@500VDC
Electrical Noise:
≤70mΩ (50rpm)
Operating Speed:
0~12rpm
Contact Material:
Precious Metal
Working Temperature:
-20°C~+60°C
Working Humidity:
60%
IP Protection Grade:
IP00
Through Hole Size:
Ø254mm
Lead Wire Size:
AWG22# Tin Coated Teflon®UL 4core Shielded Twisted Wire Cat5e
Lead Wire Length:
Rotor : 500mm Stator : 500mm
Highlight:

Precious Metals Signal Slip Ring

,

254 mm Pancake Slip Ring

,

Slim Pancake Slip Ring

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
Carton/As request
Delivery Time
2 weeks
Payment Terms
T/T,Paypal,Western Union
Supply Ability
10000pcs per month
Product Description

Extremely Thin Pancake Signal Slip Ring For Height Limited Space Application

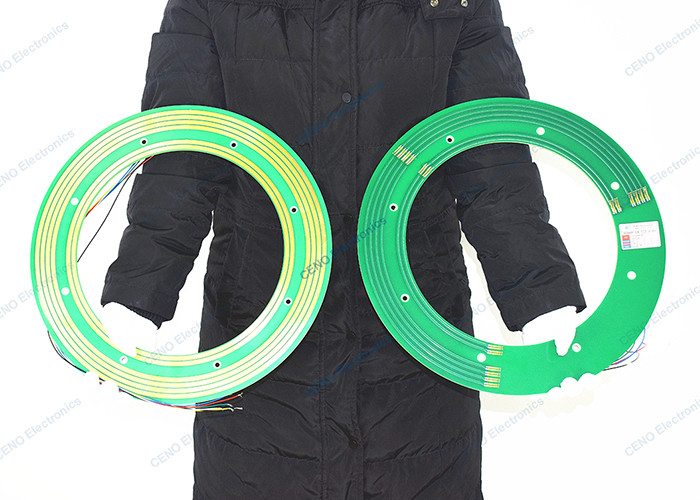

PSCN254-06S is a PCB slip ring often called ultra-thin slip ring for industry application from CENO Electronics, It’s also called pancake slip ring, platter slip ring or flat slip ring. Pancake slip ring is similar to through hole slip ring and extremely thin is the feather of this series slip ring. It’s welcomed by those application which installation space is limited in height, such as the Excavator, Medical equipment, Process control equipment, Antenna, Total station that the platter slip ring distributed the rings in radial direction to save axial space.





Features

  • Reliable contact between brush and ring
  • Flexible installation
  • Suitable for signal and power transfer of rotating devices or instrument
  • Compact size
  • Slim thickness
  • Economy cost



Typical application

  • Lamp lighting
  • Rotary stage
  • Rotary lamp box
  • Rail system
  • Automatic machine
  • Electric devices
  • Industrial machinery
  • Medical facility



Optional

  • Circuit number & Current
  • Working speed
  • Protection grade
  • Thickness, inner, outer bore size







Specification

PSCN254-06S

Specification
Current & Circuits 6circuits*0.5A
Rating Voltage 0~220VAC/VDC
Dielectric strength ≥500VAC@50Hz
Isolation resistance ≥200MΩ@500VDC
Electrical noise ≤70mΩ (50rpm)
Operating speed 0~12rpm
Contact material Precious metal
PCB FR-4
Working temperature -20°C~+60°C
Working humidity 60%
IP protection grade IP00
Through hole size Ø254mm
Lead wire size AWG22# Tin coated Teflon®UL
Lead wire length

Rotor : 500mm

Stator : 500mm

Rotation Way PCB board fixed on customers flange








Outline drawing

Slim Pancake Signal Slip Ring 254 Mm For Height Limited Space Application 0
