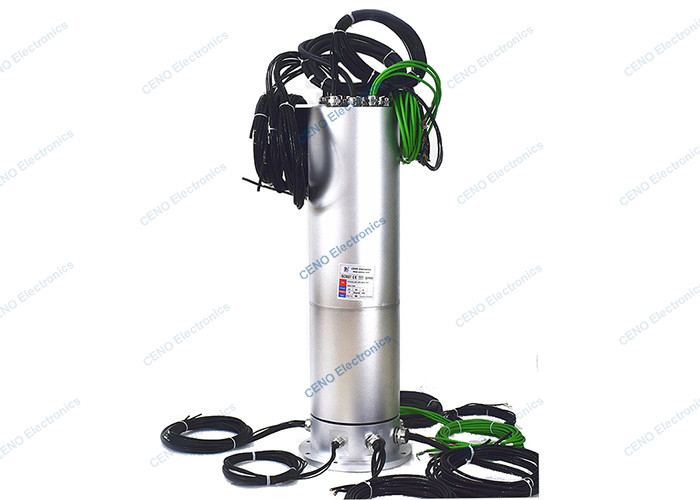

IP67 Waterproof Gigabit Ethernet Slip Ring For Industry Marine Equipment

IP67 Waterproof Gigabit Ethernet Slip Ring For Industry Marine Equipment

  • IP67 Waterproof Gigabit Ethernet Slip Ring For Industry Marine Equipment
IP67 Waterproof Gigabit Ethernet Slip Ring For Industry Marine Equipment
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN040-22P-58S-04EG-IP67
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Current & Circuits: 10circuits*70A, 1circuits*PE, 8circuits*40A, 4circuits*25A, 40circuits*2A, 3circuits*RS422, 4circuits*1000M Ethernet (BER Error Rate:10E-12) Rating Voltage: 0~400VAC/VDC
Dielectric Strength: ≥1000VAC@50Hz ≥500VAC@50Hz Isolation Resistance: ≥500MΩ@1000VDC ≥100MΩ@100VDC
Electrical Noise: ≤30mΩ (50rpm) Operating Speed: 0~50rpm
Contact Material: Precious Metal Housing Material: Aluminum Alloy
Working Temperature: -30°C~+80°C Working Humidity: 90%
IP Protection Grade: IP67 Through Hole Size: Ø40mm
External Diameter: Ø220mm Lead Wire Size: 16mm² Wire AWG10#12# Tin Coated Teflon®UL 40*0.3mm² Wire 4 Core Twisted Shield Wire Cat5e Net Wire
Lead Wire Length: Rotor : 3000mm Stator : 3000mm Installation: Flange Installation
High Light:

IP67 Gigabit Ethernet Slip Ring

,

Waterproof Gigabit Ethernet Slip Ring

,

Marine Equipments Waterproof Slip Ring



IP67 Waterproof Gigabit Ethernet Slip Ring For Industry Marine Equipment



ECN040-22P-58S-04EG-IP67 is a high protection water proof Gigabit Ethernet Slip ring for industry application from CENO Electronics. It’s non-standard slip ring with 10circuits for 70A electric power, 8 circuits for 40A, 4circuits for 25A, 40circuits for 2A, 3circuits for RS422, 4circuits for 1000M Gigabit Ethernet and with IP67 high protection grade even to military standards IP68. Due to it’s high protection and combined large Ethernet signal with various electric power, most apply to the Boats and ship machinery, Port machine, Bear or milk equipment and Communication systems.







Features

  • Can combined multiple signals and various currents
  • No electromagnetic interference between current & signal.
  • High protection IP67



Applications

  • Automatic machine
  • Communication systems
  • Boats and ship machinery
  • Port machine



Optional

  • Circuit number & Current
  • Channels & Ethernet type
  • Materials
  • Protection grade







Specification

ECN040-22P-58S-04EG-IP67

Specification
Current & Circuits

10circuits*70A, 1circuits*PE, 8circuits*40A, 4circuits*25A, 40circuits*2A, 3circuits*RS422, 4circuits*1000M Ethernet

(BER Error rate:10E-12)

Rating Voltage 0~400VAC/VDC
Dielectric strength

≥1000VAC@50Hz

≥500VAC@50Hz

Isolation resistance

≥500MΩ@1000VDC

≥100MΩ@100VDC

Electrical noise ≤30mΩ (50rpm)
Operating speed 0~50rpm
Contact material Precious metal
Housing material Aluminum alloy
Working temperature -30°C~+80°C
Working humidity 90%
IP protection grade IP67
Through hole size Ø40mm
External diameter Ø220mm
Lead wire size

16mm² wire

AWG10#12# Tin coated Teflon®UL

40*0.3mm² wire

4 core Twisted Shield wire

Cat5e net wire

Lead wire length

Rotor : 3000mm

Stator : 3000mm

Installation Flange installation







Outline drawing

IP67 Waterproof Gigabit Ethernet Slip Ring For Industry Marine Equipment 0











CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


Why with CENO

IP67 Waterproof Gigabit Ethernet Slip Ring For Industry Marine Equipment 1



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

IP67 Waterproof Gigabit Ethernet Slip Ring For Industry Marine Equipment 3



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
