| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN000-15P-IP67 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 1000pcs per month |
| Current & Circuits: | 5circuits*32A, 9circuits*10A | Rating Voltage: | 0~380VAC/VDC |
|---|---|---|---|
| Dielectric Strength: | ≥1500VAC@50Hz ≥300VAC@50Hz | Isolation Resistance: | ≥500MΩ@500VDC ≥100MΩ@300VDC |
| Electrical Noise: | ≤30mΩ (50rpm) | Operating Speed: | 0~300rpm |
| Contact Material: | Precious Metal | Housing Material: | Aluminum Alloy |
| Working Temperature: | -20°C~+60°C | Working Humidity: | 90% |
| IP Protection Grade: | IP67 | External Diameter: | Ø99mm |
| Lead Wire Size: | AWG10#16# Wire Teflon®UL | Lead Wire Length: | Rotor : 2000mm Stator : 2000mm |
| Installation: | Flange Installation & Anti-Rotation | ||
| High Light: | Waterproof Slip Ring IP67,Precious metal Waterproof Slip Ring,Automatic System Waterproof Slip Ring |
||

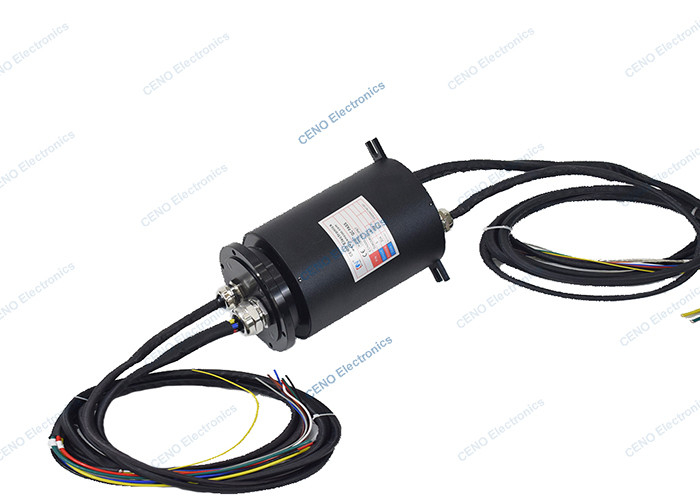

Function Waterproof Slip Ring With IP67 For Industrial Automatic System
ECN000-15P-IP67 is CENO’s new Water-proof Function Slip Ring with the IP67 for offshore equipment. Waterproof slip ring is a general term for slip ring used in special environment such as humidity, corrosion and underwater, which can solve the working problems in the underwater environment. According to it’s working environment, it is divided into multiple protection levels, such as IP65, IP67, IP68 and other protection levels and can be used underwater up 1500m. For more information about how CENO’s slip ring can fit your specific application, please contact us.
Features
Applications
Optional
Specification
|
ECN000-15P-IP67 |
Specification |
| Current & Circuits | 5 circuit*32A; 9circuit*10A |
| Rating Voltage |
0~380VAC/VDC |
| Dielectric strength |
≥1500VAC@50Hz ≥300VAC@50Hz |
| Isolation resistance |
≥500MΩ@500VDC ≥100MΩ@300VDC |
| Contact resistance | 30mΩ (50rpm) |
| Contact material | Precious metal |
| Housing material | Aluminum Alloy |
| Working temperature | -20°C~+60°C |
| Working humidity | 60 %RH |
| IP protection grade | IP67 |
| Operating speed | 0~300rpm |
| Lead wire size |
AW10# Wire Teflon® UL AW16# Wire Teflon® UL |
|
Lead wire length |
Rotor : 2000mm Stator : 2000mm |
| External diameter | Ø99mm |
| Rotation way | Anti-Rotation Tab & Flange installation |
Outline drawing
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Why with CENO
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
Contact Person: Lam
Tel: +8615767660191
