| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,UL,ISO9001 |
| Model Number: | ACN022-30P-01EM |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | Off the shelf |
| Payment Terms: | T/T,Paypal,Western Union, L/C |
| Supply Ability: | 10000pcs month |
| Current & Circuits: | 1*HDMI; 1*PLA; 1*RS422; 1*Ethernet; 2*Sine; 13*2A; 2*1A. | Rating Voltage: | 0~48VAC/VDC |
|---|---|---|---|
| Dielectric Strength: | ≥500VAC@50Hz (P) ≥100VAC@50Hz (S) | Isolation Resistance: | ≥1000MΩ@500VDC(P) ≥10MΩ@00VDC(S) |
| Electrical Noise: | Max 35mΩ | Operating Speed: | 0~300rpm |
| Contact Material: | Gold To Gold | Housing Material: | Aluminium Alloy |
| Working Temperature: | -40°C~+60°C | IP Protection Grade: | IP40 |
| Working Humidity: | 60 %RH | Lead Wire Length: | Rotor : 300±5mm Stator : 400/1000±5mm |
| External Diameter: | Ø22mm | ||
| High Light: | Ethernet Signal Capsule Slip Ring,RS422 Signal Capsule Slip Ring,HDMI Signal Capsule Slip Ring |
||

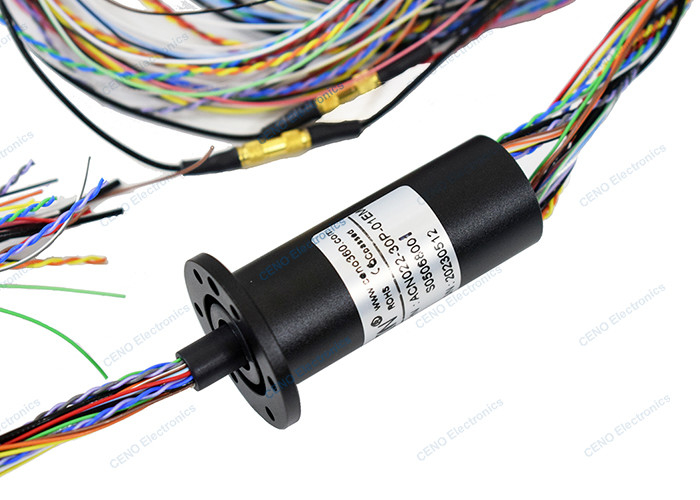

Low Temperature Capsule Slip Ring With HDMI RS422 & Ethernet Signal
ACN022-30P-01EM is CENO’s new design capsule slip ring with 1circuit HDMI, 1circuit Ethernet,1group RS422 and others electrical signals. The capsule HDMI slip ring is designed and applied to the low temperature environment from -40°C~+60°C. It’s support video standards up to 2K@90Hz and no flash screen no frame loss phenomenon. Often applied to the VR application, Infrared photography, photoelectric pod or Radar communication. For more information about how CENO’s slip ring can fit your specific applications, please contact us.
Features
Applications
Optional
Specification
|
ACN022-30P-01EM |
Specification |
| Current & Circuits |
1group*HDMI; 1group*PLA Analog Video Signal; 1group*RS422; 1group*100M Ethernet; 2group*Sine Signal; 13circuits*2A; 2circuits*1A. |
| Rating Voltage |
0~48VAC/VDC |
| Dielectric strength |
≥500VAC@50Hz (P) ≥100VAC@50Hz (S) |
| Isolation resistance |
≥1000MΩ@500VDC(P) ≥10MΩ@00VDC(S) |
| Contact resistance | 35mΩ (50rpm) |
| Contact material | Gold to Gold |
| Housing material | Aluminum Alloy |
| Working temperature | -40°C~+60°C |
| Working humidity | 60%RH |
| IP protection grade | IP40 |
| Operating speed | 0~300rpm |
| External diameter | Ø22mm |
|
Lead wire length |
Rotor : 300±5mm Stator : 400/1000±5mm |
Outline drawing
Our Service
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.
FAQ
1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.
2. How long have we been in the business?
CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.
3. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.
4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.
5. Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
