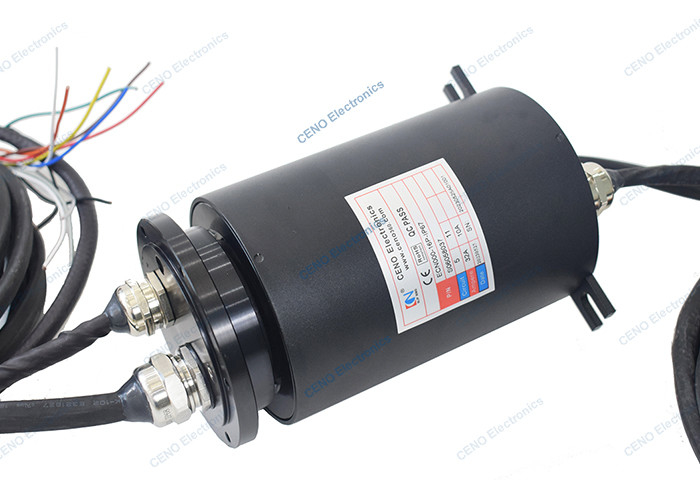

IP67 Waterproof Mechanical Slip Ring For Industrial System / Humidity Environment
  • IP67 Waterproof Mechanical Slip Ring For Industrial System / Humidity Environment
  • IP67 Waterproof Mechanical Slip Ring For Industrial System / Humidity Environment
  • IP67 Waterproof Mechanical Slip Ring For Industrial System / Humidity Environment
IP67 Waterproof Mechanical Slip Ring For Industrial System / Humidity Environment

IP67 Waterproof Mechanical Slip Ring For Industrial System / Humidity Environment

Place of Origin China
Brand Name CENO
Certification CE,RoHS,ISO9001,UL
Model Number ECN000-16P-IP67
Product Details
Current & Circuits:
5circuits*32A; 11circuit*10A;
Rating Voltage:
0~380VAC/VDC
Dielectric Strength:
≥1500VAC@50Hz ≥300VAC@50Hz
Isolation Resistance:
≥500MΩ@500VDC ≥100MΩ@300VDC
Electrical Noise:
≤30mΩ (50rpm)
Operating Speed:
0~300rpm
Contact Material:
Precious Metal
Housing Material:
Aluminum Alloy
Working Temperature:
-20°C~+60°C
Working Humidity:
90%
IP Protection Grade:
IP67
External Diameter:
Ø99mm
Lead Wire Size:
AWG10#16# Wire Teflon®UL
Lead Wire Length:
Rotor : 3000mm Stator : 3000mm
Installation:
Flange Installation & Anti-Rotation
Highlight:

IP67 Mechanical Slip Ring IP67 Mechanical Slip Ring

,

Waterproof Slip Ring For Humidity Environment

,

Mechanical Slip Ring for Humidity Environment

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Carton/As request
Delivery Time
1 week
Payment Terms
T/T,Paypal, Western Union
Supply Ability
1000pcs per month
Product Description

IP67 Waterproof mechanical Slip Ring For Industrial system Or Humidity Environment



ECN000-16P-IP67 is CENO’s new design IP67 water proof slip ring for open country or outdoors application. CENO has delivered trusted technology products and services to the land or offshore petroleum, seismic and maritime industries, and we designs and manufactures for about 5000designs in nearly 20 years. CENO Water proof slip ring are designed to function in extreme humidity and harsh wild outdoor environment.For more information about how CENO’s water proof slip ring or other function slip ring can fit your specific wording environment, please contact us.







Features

  • Protection grade IP67
  • Different sealing forms and boundary can be selected
  • Can be integrated various data
  • Install easily & transmit stably



Applications

  • Offshore petroleum
  • Marine
  • Mine
  • Outdoor Machinery
  • Medical Equipment



Optional

  • Circuit, Voltage, Current
  • Protection grade
  • Contact / Housing Materials
  • Sealing forms
  • Working speed







Specification



ECN000-16P-IP67

 Specification
Current & Circuits

5circuits*32A; 11circuit*10A;
Rating Voltage

0~380VAC/VDC
Dielectric strength

≥1500VAC@50Hz (P)

≥300VAC@50Hz (S)
Isolation resistance

≥500MΩ@500VDC (P)

≥100MΩ@300VDC (S)
Electrical Noise 30mΩ (50rpm)
Contact material Precious Metal
Housing material Aluminum Alloy
Working temperature -20°C~+60°C
Working humidity 60 %RH
IP protection grade IP67
Operating speed 0~300rpm
Lead wire size AW10# 16 #Wire Teflon® UL

Lead wire length

Rotor : 3000mm

Stator : 3000mm
External diameter Ø99mm









Outline drawing

IP67 Waterproof Mechanical Slip Ring For Industrial System / Humidity Environment 0







CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


Why with CENO

IP67 Waterproof Mechanical Slip Ring For Industrial System / Humidity Environment 1



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

IP67 Waterproof Mechanical Slip Ring For Industrial System / Humidity Environment 2



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

IP67 Waterproof Mechanical Slip Ring For Industrial System / Humidity Environment 3



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
