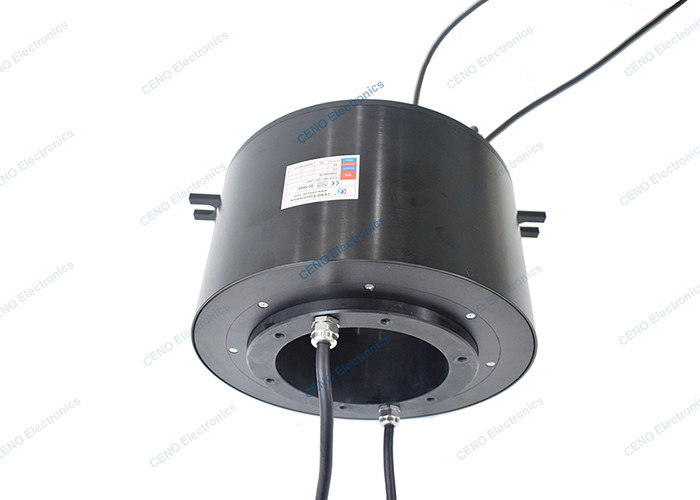

IP67 Waterproof Through Hole Slip Ring ID 150mm For Automatic Industrial System
  • IP67 Waterproof Through Hole Slip Ring ID 150mm For Automatic Industrial System
  • IP67 Waterproof Through Hole Slip Ring ID 150mm For Automatic Industrial System
  • IP67 Waterproof Through Hole Slip Ring ID 150mm For Automatic Industrial System
IP67 Waterproof Through Hole Slip Ring ID 150mm For Automatic Industrial System

IP67 Waterproof Through Hole Slip Ring ID 150mm For Automatic Industrial System

Place of Origin China
Brand Name CENO
Certification CE,RoHS,ISO9001,UL
Model Number ECN150-12P1-IP67
Product Details
Current & Circuits:
12circuits*5A
Rating Voltage:
0~250VAC/VDC
Dielectric Strength:
≥1000VAC@50Hz
Isolation Resistance:
≥500MΩ@500VDC
Electrical Noise:
≤30mΩ (50rpm)
Operating Speed:
0~40rpm
Contact Material:
Precious Metal
Housing Material:
Aluminum Alloy
Working Temperature:
-20°C~+60°C
Working Humidity:
60%
IP Protection Grade:
IP67
Inner Diameter:
Ø150mm
External Diameter:
Ø298mm
Lead Wire Size:
Six-core Cable
Installation:
Fix Stator Side To Main Shaft
Highlight:

Waterproof Slip Ring IP67

,

ID 150mm Through Hole Slip Ring

,

Waterproof Slip Ring For Automatic Industrial

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Carton/As request
Delivery Time
1 week
Payment Terms
T/T,Paypal, Western Union
Supply Ability
1000pcs per month
Product Description

IP67 Waterproof through hole Slip Ring with ID150mm for automatic industrial system



ECN150-12P1-IP67 is water proof slip ring with IP67 and large size inner bore 150mm electrical collector from CENO Electronics. CENO has delivered trusted technology products and services to the offshore petroleum, oceanographic, seismic and maritime industries for nearly 20 years. CENO water-proof slip rings are designed to function in extreme marine environments. CENO has over than 5000 designs for various industrial these years. For more information about how CENO’s slip ring can fit your specific applications, please contact us.





Features

  • Different sealing forms and boundary can be selected
  • Can be integrated various data
  • Install easily & transmit stably
  • Extended protection grade IP67



Applications

  • Mine
  • Offshore
  • oceanographic
  • Marine industrial
  • Medical equipment



Optional

  • Circuit, Voltage, Current
  • Protection Grade
  • Contact / Housing Materials
  • Lead wires
  • Working speed









Specification

ECN150-12P1-IP67

 Specification
Current & Circuits

12circuits*5A
Rating Voltage

0~250VAC/VDC
Dielectric strength ≥1000VAC@50Hz
Isolation resistance ≥500MΩ@500VDC
Electrical Noise 30mΩ (50rpm)
Contact material Precious Metal
Housing material Stainless steel + Aluminum Alloy
Working temperature -20°C~+60°C
Working humidity 60%RH
IP protection grade IP67
Operating speed 0~40rpm
Lead wire size Six-core Cable

Lead wire length

Rotor : 1000mm

Stator : 1000mm
Inner Diameter Ø150mm
External Diameter Ø298mm
Installation Fix stator side to main shaft





Outline drawing

IP67 Waterproof Through Hole Slip Ring ID 150mm For Automatic Industrial System 0







CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


Why with CENO

IP67 Waterproof Through Hole Slip Ring ID 150mm For Automatic Industrial System 1



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

IP67 Waterproof Through Hole Slip Ring ID 150mm For Automatic Industrial System 2



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

IP67 Waterproof Through Hole Slip Ring ID 150mm For Automatic Industrial System 3



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
