Place of Origin: | China |
Brand Name: | CENO |
Certification: | CE,RoHS,UL,ISO9001 |
Model Number: | CCN-10J |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiable |
Packaging Details: | Carton |
Delivery Time: | Off the shelf |
Payment Terms: | T/T,Paypal,Western Union, L/C |
Supply Ability: | 10000pcs month |
Housing Material: | Aluminum Alloy / Engineer Plastic Or Metal Optional | Operating Speed: | 0~300rpm |
---|---|---|---|
Contact Resistance: | 1mΩ (50rpm) | Isolation Resistance: | ≥1000MΩ@500VDC |
Lead Wire Size: | AWG30# Silver Coated Teflon® UL | Current & Circuits: | 10circuits*1A |
Working Temperature: | -20°C~+60°C | Lead Wire Length: | 2500mm |
Dielectric Strength: | ≥500VAC@50Hz | Rating Voltage: | 240VAC/DC |
Contact Material: | Precious Metal | Working Humidity: | 5~85 %RH |
IP Protection Grade: | IP54 | External Diameter: | Ø10mm |
Torque: | ≤0.15g.m | ||
High Light: | 10mm Capsule Slip Ring,Precious metal Capsule Slip Ring,10 circuits Capsule Slip Ring |
Capsule Slip Ring is a widely used electrical device that enables the transmission of data, power and signals from a stationary part to a rotating part. The product features a 2500mm lead wire length, a dielectric strength of ≥240VAC@50Hz, 10 circuits of 1A current capacity, and a 5~85 %RH working humidity. It is composed of an aluminum alloy or engineer plastic or metal housing optional, which is highly reliable and durable.
Capsule Slip Ring is designed to provide reliable and continuous rotation of power and signals. It is highly capable of transmitting various types of signals and power, making it a great choice for applications in military, medical, aerospace and other industries. With its superior performance, Capsule Slip Ring ensures smooth and reliable transmission of signal and power even in harsh environments, making it a great choice for all types of applications.
Capsule Slip Ring is an ideal solution for the transmission of power and signals in a wide range of applications. It features a robust and reliable design, which is capable of withstanding the toughest conditions. With its superior performance, Capsule Slip Ring provides reliable and continuous rotation of power and signals, making it an ideal choice for all types of applications.
Product Attributes | Specifications |
---|---|
Current & Circuits |
10circuits*1A |
Rating Voltage |
240VAC/DC |
Dielectric strength |
≥500VAC@50Hz |
Isolation resistance |
≥1000MΩ@500VDC |
Working humidity | 5~85 %RH |
Contact resistance | 1mΩ (50rpm) |
Lead wire size | AWG30# Silver Coated Teflon® UL |
Isolation resistance | ≥1000MΩ@500VDC |
Working temperature | -20°C~+60°C |
Housing material | Aluminum Alloy / Engineer Plastic Or Metal Optional |
IP protection grade | IP54 |
Lead wire length | 2500mm |
Operating speed |
0~300rpm |
Torque | ≤0.15g.m |

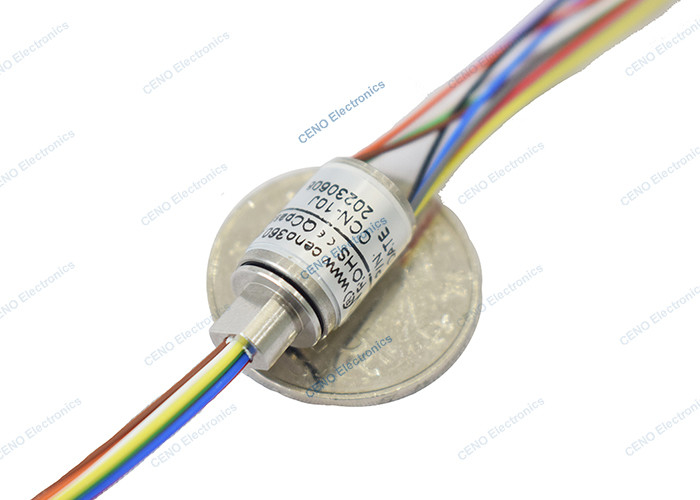

CENO CCN-10J capsule slip ring is a high-performance signal slip ring with a brand name of CENO. It is certified with CE, RoHS, UL and ISO9001 and has a minimum order quantity of 1. It has a negotiable price and its packaging details are carton. It is available off the shelf and payment terms are T/T, Paypal, Western Union and L/C. It has a supply ability of 10000pcs per month. Its operating speed ranges from 0 to 300rpm with a contact resistance of 1mΩ (50rpm). It has an IP protection grade of IP54 and its housing material is either aluminum alloy or engineer plastic or metal. It can transmit up to 10 circuits of 1A of current.
CENO CCN-10J capsule slip ring has a wide range of applications in various fields such as medical, military, entertainment, aerospace and other industries. It is especially suitable for equipment that requires high-speed and stable transmission of signals and power, such as robots, wind turbines, medical equipment, cameras, unmanned aerial vehicles, radars, etc. It has low contact resistance, high-speed transmission, high-precision signal and reliable operation, and can be used in harsh environments, making it the perfect choice for signal/power transmission.
We provide technical support and service for our Capsule Slip Ring products. Our team of experts is available to assist you with any questions you may have about the product, its installation, its use and maintenance. We also offer troubleshooting and repair services if the product requires it. If you need to replace any parts of the product, we can provide them to you quickly and at a competitive price.
We also provide regular maintenance and inspection services for our Capsule Slip Ring products. This helps to ensure that the product is functioning properly and that it is in good condition. We also provide warranty coverage for our products, so you can rest assured that your purchase is protected.
Our customer service team is available to answer any questions you may have about our Capsule Slip Ring products. We are dedicated to providing the best possible support and service for our customers, and we look forward to hearing from you.
