| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN000-04P4-04P2-IP65 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 1000pcs per month |
| Current & Circuits: | 4circuits*25A; 4circuits*10A | Rating Voltage: | 0~400VAC/VDC |
|---|---|---|---|
| Dielectric Strength: | ≥1500VAC@50Hz | Isolation Resistance: | ≥500MΩ@500VDC |
| Electrical Noise: | ≤30mΩ (50rpm) | Operating Speed: | 0~300rpm |
| Contact Material: | Precious Metal | Housing Material: | Aluminum Alloy |
| Working Temperature: | -20°C~+60°C | Working Humidity: | 60% |
| IP Protection Grade: | IP65 | Lead Wire Length: | Rotor : 1000mm Stator : 1000mm |
| External Diameter: | Ø86mm | ||
| High Light: | Waterproof Mechanical Function Slip Ring,IP65 Mechanical Function Slip Ring,400VAC Waterproof Slip Ring |
||

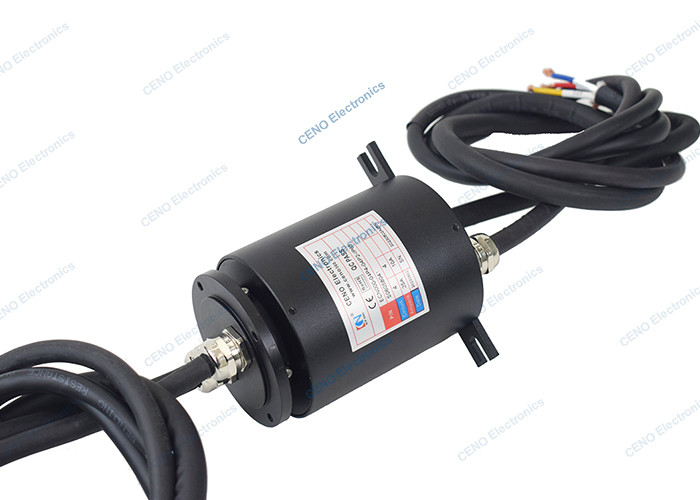

Mechanical Function Slip Ring with IP65 Water proof for Automatic System
ECN000-04P4-04P2-IP65 is CENO new function product water proof slip ring with IP65. CENO has many kinds of function products as water proof, high speed slip ring, high / low temperature slip ring etc. Water proof slip ring specialized in it’s high protection and the grade can be up to IP68 as different requires. Because of it’s stable and smooth performance, typical apply to the wet or high humidity environment, marine, offshore and harsh environments. All of CENO products can be modified to meet specific requirement, please contact us for more information.
Features
Applications
Optional
Specification
|
ECN000-04P4-04P2-IP65 |
Specification |
| Current & Circuits |
4circuits*25A; 4circuits*10A |
| Rating Voltage | 0~400VAC/VDC |
| Dielectric strength | ≥1500VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC |
| Electrical Noise | 30mΩ (50rpm) |
| Contact material | Precious metal |
| Housing material | Aluminum Alloy |
| Working temperature | -20°C~+60°C |
| Working humidity | 60 %RH |
| IP protection grade | IP65 |
| Operating speed | 0~300rpm |
|
Lead wire length |
Rotor : 1000mm Stator :1000mm |
| External diameter | Ø86mm |
Outline Drawing
