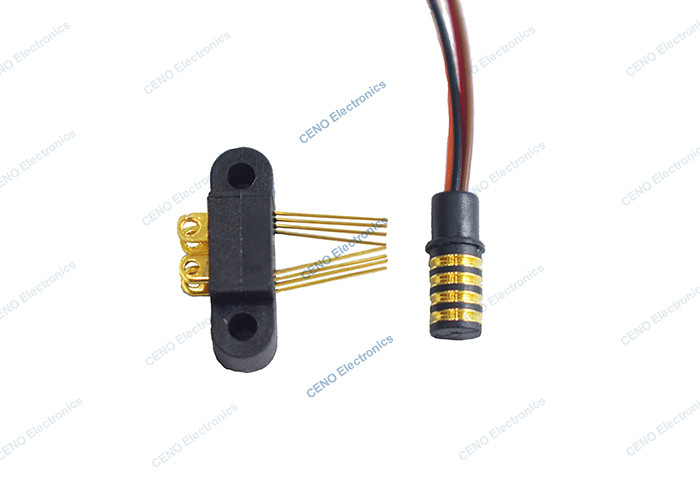

Two Half Separates Slip Ring Electric Motor 100rpm For Medical Equipment
  • Two Half Separates Slip Ring Electric Motor 100rpm For Medical Equipment
  • Two Half Separates Slip Ring Electric Motor 100rpm For Medical Equipment
  • Two Half Separates Slip Ring Electric Motor 100rpm For Medical Equipment
Two Half Separates Slip Ring Electric Motor 100rpm For Medical Equipment

Two Half Separates Slip Ring Electric Motor 100rpm For Medical Equipment

Place of Origin China
Brand Name CENO
Certification CE,RoHS,ISO9001,UL
Model Number SCN04
Product Details
Circuit & Current:
4circuits*2A
Contact Material:
Gold To Gold
Operating Speed:
100rpm
Voltage:
240 VAC/DC
Dielectric Strength:
≥500VAC@50Hz
Isolation Resistance:
≥1000MΩ@100VDC
Contact Resistance:
1mΩ (50rpm)
Housing Material:
Engineer Plastic
Working Temperature:
-20°C~+60°C
Lead Wire Size:
AWG32# Silver Coated Wire Teflon® UL
Lead Wire Length:
Standard 250mm
Working Life:
5x107 Rotation
External Diameter:
Ø3.5mm
Highlight:

Separates Electric Motor Slip Ring

,

100rpm Separates Slip Ring

,

240VAC Separates Slip Ring

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Cartons/As request
Delivery Time
1 weeks
Payment Terms
T/T,Paypal, Western Union, L/C
Supply Ability
1000pcs per month
Product Description



Two Half Style Separates Slip Ring With 4 circuits 2A for Medical Equipment



SCN04 is one of CENO SCN series two half separates product. the outer diameter of the split slip ring copper ring is 3.5mm, the design precision is extremely high, and the surface treatment adopts and Using domestic leading military technology, low contact resistance, long life, reliable operation, It is especially suitable for small rotating systems to transmit weak control signals. The electric parameters circuits, current, voltage and materials are optional as different applications. For more information please contact us.







Features

  • Long service life
  • Low torque
  • Can be integrated various data
  • Install easily & transmit stably
  • Compact structure



Applications

  • Electrical test equipment
  • Robot
  • Exhibition equipment
  • Automation small system
  • Medical equipment



Optional

  • Circuit, Voltage, Current
  • Channels, air or liquid
  • Contact / Housing Materials
  • Working life
  • Working speed







Specification

SCN04

 Specification
Current & Circuits

4circuits*2A
Rating Voltage 240 VAC/DC
Dielectric strength ≥500VAC@50Hz
Isolation resistance ≥1000MΩ@100VDC
Contact resistance 1mΩ (50rpm)
Contact material Gold to Gold
Housing material Engineer plastic
Working temperature -20°C~+60°C
Operating speed 0~100rpm
Lead wire size AWG32# Silver coated Wire Teflon® UL

Lead wire length

 Standard 250mm
Working life 5x107 Rotation
External diameter Ø3.5mm









Outline drawing

Two Half Separates Slip Ring Electric Motor 100rpm For Medical Equipment 0









Similar Applications





Two Half Separates Slip Ring Electric Motor 100rpm For Medical Equipment 1



Two Half Separates Slip Ring Electric Motor 100rpm For Medical Equipment 2
