| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN050-18P-IP67 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 1000pcs per month |
| Current & Circuits: | 6circuits*10A; 6circuits*20A; 6circuits*30A | Rating Voltage: | 0~380VAC/VDC |
|---|---|---|---|
| Dielectric Strength: | ≥1000VAC@50Hz | Isolation Resistance: | ≥500MΩ@500VDC |
| Electrical Noise: | ≤30mΩ (50rpm) | Operating Speed: | 0~30rpm |
| Contact Material: | Precious Metal | Housing Material: | Aluminum Alloy |
| Working Temperature: | -20°C~+60°C | Working Humidity: | 60% |
| IP Protection Grade: | IP67 | Lead Wire Length: | Rotor : 500mm Stator : 500mm |
| External Diameter: | Ø135mm | Inner Diameter: | Ø50mm |
| Installation: | Otor Side Fixed On Guest Main Shaft With Screws | ||
| High Light: | ip67 waterproof slip ring,id 50mm waterproof slip ring |
||

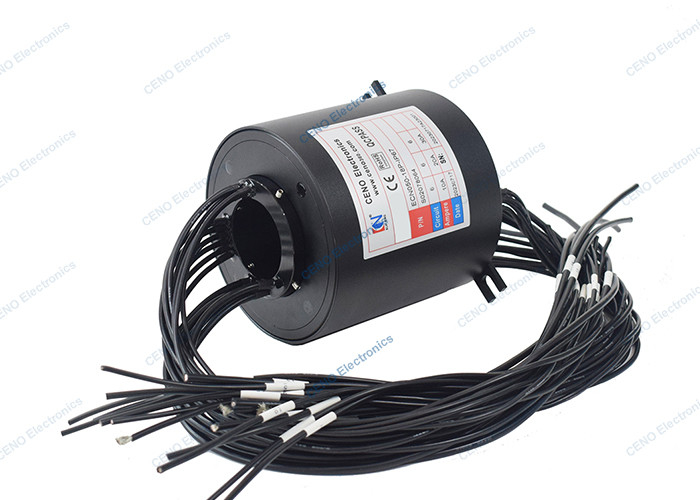

IP67 Water Proof Function Electrical Slip Ring with Rotary Electric power joints
ECN050-18P-IP67 is CENO function water proof slip ring with through hole and inner diameter Ø50mm, which is designed for the environments high humidity , corrosion, even for the under water. The water proof slip ring can be designed to multiple protection grade as the different working environment as IP65, IP66, IP67 and IP68. It’s often applied to the marine engineering, ships, port and navigation equipment. For more information about how CENO slip ring can fit your specific application, please contact us freely.
Features
Applications
Optional
Specification
|
ECN050-18P-IP67 |
Specification |
| Current & Circuits | 6circuits*10A; 6circuits*20A; 6circuits*30A |
| Rating Voltage | 0~380VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC |
| Contact resistance wave range | ≤30mΩ (50rpm) |
| Contact material | Precious Metal |
| Housing material |
Aluminum Alloy |
| Working temperature | -20°C~+60°C |
| Working humidity | ≤60%RH |
| Protection Grade | IP67 |
| Operating speed | 0~ 30 rpm |
| Lead wire size | Flexible rubber hose |
| Lead wire length | Rotor:500mm; Stator:500mm |
| Inner diameter | Ø50mm |
| External diameter | Ø135mm |
| Installation | Rotor side fixed on guest main shaft with screws |
Outline Drawing
Why Choose Us:
The Experts in Ethernet Signal Slip Rings and Low Temperature Slip Rings
For almost 20 years, CENO Electronics has been the go-to company for the development and manufacturing of slip rings. With over 5000 customized products available, we take pride in offering a wide range of slip ring solutions, including electric slip rings, signal slip rings, functional slip rings, pneumatic & hydraulic rotary joints, fiber optic rotary joints, and RF rotary joints.
One specialty that sets us apart is our expertise in Ethernet signal slip rings and low temperature slip rings. Our Ethernet signal slip rings can transfer high speed data signals without interference, while our low temperature slip rings are designed to operate in temperatures as low as -60˚C. These important features make our slip rings reliable solutions for applications in military, aerospace, and other industries.
At CENO Electronics, we value our customers and strive to provide them with the best products and services possible. Our commitment to quality, innovation, and customization has earned us the trust and loyalty of our clients. Therefore, if you are looking for a reliable slip ring supplier with extensive experience in Ethernet signal slip rings and low temperature slip rings, look no further than CENO Electronics.
