Name: Multi Channels Profibus Signal Slip Ring Capsule Flange Electrical Connector
Brand: CENO
SKU: ECN000-07P-68S
Rating: 5 (170 reviews)

Home Products Capsule Slip Ring

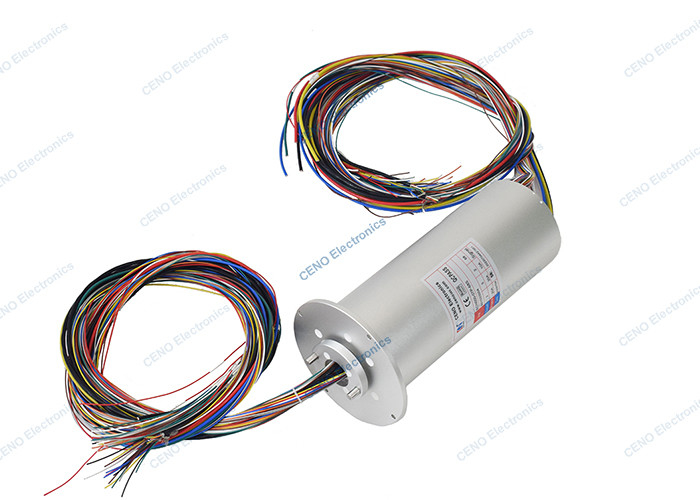

Multi Channels Profibus Signal Slip Ring Capsule Flange Electrical Connector

Product Details:

Place of Origin:	China
Brand Name:	CENO
Certification:	CE,RoHS,UL,ISO9001
Model Number:	ECN000-07P-68S

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	Off the shelf
Payment Terms:	T/T,Paypal,Western Union, L/C
Supply Ability:	10000pcs month

Contact Now

Detailed Product Description

Current & Circuits:	335A; 220A; 2010A; 40Signal; 2Link Bus; 105A(reserve)	Rating Voltage:	0~380VAC/VDC
Dielectric Strength:	≥1500VAC@50Hz; ≥300VAC@50Hz	Isolation Resistance:	≥500MΩ@300VDC; ≥100MΩ@300VDC
Contact Resistance:	≤30mΩ (50rpm)	Contact Material:	Precious Metal
Housing Material:	Aluminum Alloy	Working Temperature:	-20°C~+60°C
Operating Speed:	0~30rpm	Protection Grade:	IP51
Working Humidity:	≤90%RH	Lead Wire Size:	AWG 10# 12# 20# Tin Coated Teflon® UL 8 Core Twisted Shielded Wire
Lead Wire Length:	Rotor:1500mm; Stator:1500mm	External Diameter:	Ø110mm
Installation Way:	Flange Installation
High Light:	multi channels slip ring capsule , profibus signal slip ring capsule , capsule slip ring flange electrical connector

Multi Channels Profi Bus Signal Slip Ring Capsule Flange Electrical Swivel

ECN000-07P-68S is CENO new product multi-channels slip ring with 2 group link bus signal which is designed to solve the digital communication between intelligent instruments and meters, controllers, actuators and other field devices in industrial sites, and the information transmission between these field control devices and advanced control systems. There is no interference between current and signal, and meets the requirements of EMC electromagnetic compatibility. More information please contact us freely.

Features

Multi-channels
No interference between current and signals, no packet loss, no messy code, and low insert loss
Can be integrated various data

Applications

Industrial system
Manufacture machinery
Traffic control system
Internet of things
Medical equipment

Optional

Circuit, Voltage, Current
Signals
Contact / Housing Materials
Protection grade
Working speed

Specification

ECN000-07P-68S	Specification
Current & Circuits	3 circuits35A; 2circuits20A; 20circuits10A; 40circuitsin/out put signal; 2groupsLink Bus wires; 10circuits5A(in reserve)
Rating Voltage	0~380VAC/VDC
Dielectric strength	≥1500VAC@50Hz; ≥300VAC@50Hz
Isolation resistance	≥500MΩ@300VDC; ≥100MΩ@300VDC
Contact resistance	≤30mΩ (50rpm)
Contact material	Precious metal
Housing material	Aluminum Alloy + stainless steel
Working temperature	-20°C~+60°C
Working humidity	≤90%RH
Protection Grade	IP51
Operating speed	0~ 30 rpm
Lead wire size	AWG 10# 12# 20# Tin coated Teflon® UL 8 core twisted shielded wire
Lead wire length	Rotor:1500mm; Stator:1500mm
External diameter	Ø110mm
Installation way	Flange installation

Outline drawing

Multi Channels Profibus Signal Slip Ring Capsule Flange Electrical Connector 0

More informations

Profi bus slip rings are critical components in many industrial applications that require reliable transmission of data in rotating machinery. These slip rings come with multi-channels, which enable high-speed and high-data transmission rates.

Flange installation is a common mounting method for profi bus slip rings. This installation method ensures proper alignment and easy installation. Flange-mounted slip rings are also more stable and provide better support for the rotating machinery.

Profi bus slip rings are designed for a wide range of industrial applications, including automation systems, robotics, and manufacturing processes. These slip rings offer multiple channels to enable the simultaneous transmission of data, power, and signals over a single unit.

One of the key advantages of profi bus slip rings is their ability to operate in harsh environments. They are designed to withstand extreme temperatures, vibrations, and corrosive materials. This makes them ideal for applications in heavy- duty industries such as oil and gas, mining, and marine transportation.

In conclusion, profi bus slip rings with multi-channels and flange installation are critical components in many industrial applications that require reliable transmission of data in rotating machinery. They offer a range of benefits that make them ideal for use in harsh environments and heavy-duty industries. If you're looking for a reliable and durable slip ring for your industrial needs, consider a profi bus slip ring with flange installation.

Support and Services:

Capsule Slip Ring Technical Support and Service

We provide technical support and service for our Capsule Slip Ring products. Our team of experts is available to assist you with any questions you may have about the product, its installation, its use and maintenance. We also offer troubleshooting and repair services if the product requires it. If you need to replace any parts of the product, we can provide them to you quickly and at a competitive price.

We also provide regular maintenance and inspection services for our Capsule Slip Ring products. This helps to ensure that the product is functioning properly and that it is in good condition. We also provide warranty coverage for our products, so you can rest assured that your purchase is protected.

Our customer service team is available to answer any questions you may have about our Capsule Slip Ring products. We are dedicated to providing the best possible support and service for our customers, and we look forward to hearing from you.

FAQ:

Q1. What is CENO Capsule Slip Ring?: A1. CENO Capsule Slip Ring, model number CCN-10J, is a rotary electrical connector, which can transmit power and signal from a stationary structure to a rotating one.
Q2.Where is CENO Capsule Slip Ring made?: A2. CENO Capsule Slip Ring is made in China.
Q3.What certifications do CENO Capsule Slip Ring have?: A3. CENO Capsule Slip Ring is certified by CE,RoHS,UL,ISO9001.
Q4.What is the minimum order quantity of CENO Capsule Slip Ring?: A4. The minimum order quantity of CENO Capsule Slip Ring is 1.
Q5.What is the delivery time of CENO Capsule Slip Ring?: A5. CENO Capsule Slip Ring is off the shelf and can be delivered quickly.
