| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,UL,ISO9001 |
| Model Number: | PCN045-02P2-11S-01EM |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 2 weeks |
| Payment Terms: | T/T,Paypal,Western Union |
| Supply Ability: | 10000pcs per month |
| Current & Circuits: | 2circuits*10A, 11circuits*Signal,1*100M Ethernet | Rating Voltage: | 0~240 VAC/VDC |
|---|---|---|---|
| Dielectric Strength: | ≥500VAC@50Hz ≥100VAC@50Hz | Isolation Resistance: | ≥100MΩ@500VDC ≥50MΩ@100VDC |
| Electrical Noise: | ≤50mΩ (50rpm) | Operating Speed: | 0~50rpm |
| Contact Material: | Gold To Gold | Housing Material: | Aluminum Alloy |
| Working Temperature: | -40°C~+70°C; -45°C~+80°C | Working Humidity: | 60% |
| IP Protection Grade: | IP51 | Through Hole Size: | Ø45mm |
| External Diameter: | Ø160mm | Lead Wire Size: | AWG17#22#Tin Coated Teflon® UL CAT5e+RJ45 |
| Lead Wire Length: | Rotor: 800±5mm 500±5mm; Stator: 800±5mm 500±5mm; | Installation: | Flange |
| High Light: | low temperature pancake slip ring,through hole pancake slip ring,id 45mm pancake slip ring connector |
||

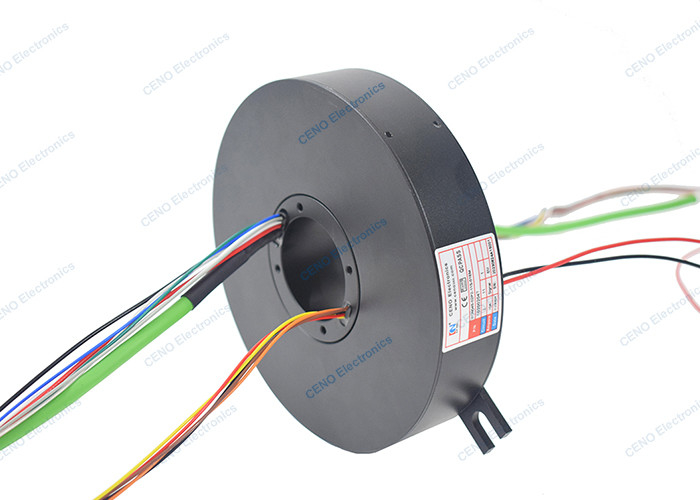

Low Temperature Pancake Slip Ring with Through Hole ID45mm & Ethernet Signal
PCN045-02P2-11S-01EM is CENO new Through hole pancake slip ring with ID45mm and Ethernet signal which is suit to the low temperature environment. CENO have customized slip rings about 5000 kinds for our customers around the world. Take this Pancake slip ring for example, it’s called platter slip ring which distributes the rings in radial direction to save axial space. The Through hole diameter 3-600mm, and thickness 6-51mm is optional. For more information about how CENO platter slip ring can fit your specific application, please contact us.
Features
Applications
Optional
Specification
|
PCN045-02P2-11S-01EM |
Specification |
| Current & Circuits |
2circuits*10A; 11circuits* Signal; 1group*100MEthernet |
| Rating Voltage | 0~240 VAC/VDC |
| Dielectric strength |
≥500VAC@50Hz ≥100VAC@50Hz |
| Isolation resistance |
≥100MΩ@500VDC ≥50MΩ@100VDC |
| Contact resistance | ≤50mΩ (50rpm) |
|
Working Temperature Storage temperature |
-40°C~+70°C -45°C~+80°C |
| Working humidity | 60%RH |
| IP protection grade | IP51 |
| Operating speed | 0~50 rpm |
| Contact material | Gold to Gold |
| Housing material | Aluminum Alloy |
| Inner diameter | Ø45mm |
| External diameter | Ø160mm |
| Lead wire size |
AWG17#22#Tin coated Teflon® UL CAT5e+RJ45 |
| Lead wire length |
Rotor: 800±5mm 500±5mm; Stator: 800±5mm 500±5mm; |
| Installation | Flange |
Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
