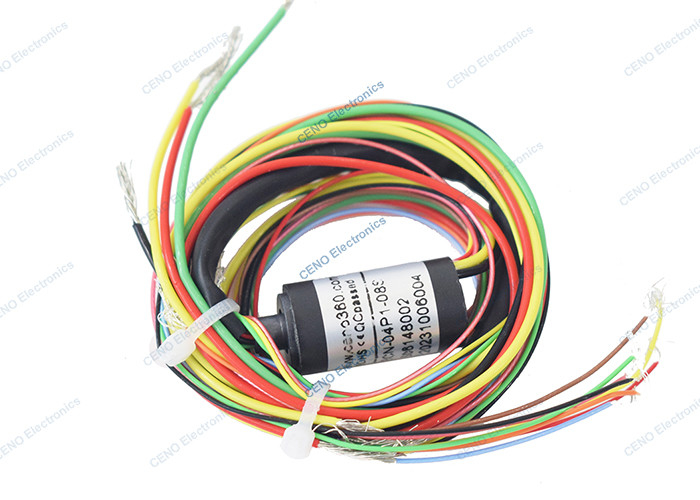

Low Temperature 300rpm Micro Slip Ring Capsule And Conductive Collector Commutator

Product Details:

Place of Origin:	China
Brand Name:	CENO
Certification:	CE,RoHS,UL,ISO9001
Model Number:	BCN-04P1-08S

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	Off the shelf
Payment Terms:	T/T,Paypal,Western Union, L/C
Supply Ability:	10000pcs month

Contact Now

Detailed Product Description

Current & Circuits:	4 Circuits5A; 8 Circuits1A	Dielectric Strength:	≥200VAC@50Hz
Isolation Resistance:	≥50MΩ@200VDC	Contact Resistance:	35mΩ (50rpm)
Contact Material:	Gold To Gold	Housing Material:	Engineering Plastic
Working Temperature:	-40°C~+80°C	Working Humidity:	60 %RH
IP Protection Grade:	IP51	Operating Speed:	0~300rpm
Lead Wire Size:	AWG 22# 30# Wire Teflon® UL	Lead Wire Length:	Rotor : 250mm; Stator : 250mm
External Diameter:	Ø12.4mm	Rotation Torque:	≤0.88g.m
High Light:	low temperature micro slip ring , 300rpm micro slip ring , awg 22 wire capsule slip ring

Low Temperature Micro Slip Ring Capsule and Conductive Collector Commutator

BCN-04P1-08S is CENO new mini slip rings capsule which combine power electrical with signals for the low temperature environments. Mini conductive slip rings capsule are the general name for series of electrical slip rings with a circular flange attached to the housing. The capsule slip rings features compact in design, small in size, easy to install and military grade surface treatment technology, the compact design to fit in the most demanding space. For more information about how CENO low temperature slip rings fit your specific, please contact us.

Features

Small compact structure suit most demanding space
Operating smooth & small torque
Can be integrated various data
Install easily & transmit stably

Applications

Surveillance ball
Electric test equipment
Robot
Exhibition/advertising equipment
Medical equipment

Optional

Circuit, Voltage, Current
Signals or data
Contact / Housing Materials
Protection grade
Working speed & temperature

Specification

BCN-04P1-08S	Specification
Current & Circuits	4 circuits * 5A; 8 circuits * 1A
Dielectric strength	≥200VAC@50Hz
Isolation resistance	≥50MΩ@200VDC
Contact resistance	35mΩ (50rpm)
Contact material	Gold to Gold
Housing material	Engineering plastic
Working temperature	-40°C~+80°C
Working humidity	60 %RH
IP protection grade	IP51
Operating speed	0~300rpm
Lead wire size	AWG 22# 30# Wire Teflon® UL
Lead wire length	Rotor : 250mm; Stator : 250mm
External diameter	Ø12.4mm
Rotation torque	≤0.88g.m

Outline drawing

Low Temperature 300rpm Micro Slip Ring Capsule And Conductive Collector Commutator 0

Support and Services:

Capsule Slip Ring Technical Support and Service

We provide technical support and service for our Capsule Slip Ring products. Our team of experts is available to assist you with any questions you may have about the product, its installation, its use and maintenance. We also offer troubleshooting and repair services if the product requires it. If you need to replace any parts of the product, we can provide them to you quickly and at a competitive price.

We also provide regular maintenance and inspection services for our Capsule Slip Ring products. This helps to ensure that the product is functioning properly and that it is in good condition. We also provide warranty coverage for our products, so you can rest assured that your purchase is protected.

Our customer service team is available to answer any questions you may have about our Capsule Slip Ring products. We are dedicated to providing the best possible support and service for our customers, and we look forward to hearing from you.

FAQ:

Q1. What is CENO Capsule Slip Ring?: A1. CENO Capsule Slip Ring, model number CCN-10J, is a rotary electrical connector, which can transmit power and signal from a stationary structure to a rotating one.
Q2.Where is CENO Capsule Slip Ring made?: A2. CENO Capsule Slip Ring is made in China.
Q3.What certifications do CENO Capsule Slip Ring have?: A3. CENO Capsule Slip Ring is certified by CE,RoHS,UL,ISO9001.
Q4.What is the minimum order quantity of CENO Capsule Slip Ring?: A4. The minimum order quantity of CENO Capsule Slip Ring is 1.
Q5.What is the delivery time of CENO Capsule Slip Ring?: A5. CENO Capsule Slip Ring is off the shelf and can be delivered quickly.
