| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | BHCN-C-08250-IP66 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 1000pcs per month |
| Current & Circuits: | 8 Circuits*250A | Rating Voltage: | 0~480VAC/VDC |
|---|---|---|---|
| Dielectric Strength: | ≥1500VAC@50Hz | Isolation Resistance: | ≥500MΩ@500VDC |
| Electrical Noise: | ≤30mΩ (50rpm) | Operating Speed: | 0~10rpm |
| Contact Material: | Copper Graphite | Housing Material: | Aluminum Alloy |
| Working Temperature: | -20°C~+60°C | Working Humidity: | 60% |
| IP Protection Grade: | IP66 | Lead Wire Length: | Rotor : 3000mm Stator : 3000mm |
| External Diameter: | Ø410mm | Installation: | Otor Side Fixed On Guest Main Shaft With Screws |
| High Light: | ip66 waterproof slip ring,high amp waterproof slip ring,ip66 high current slip ring |
||

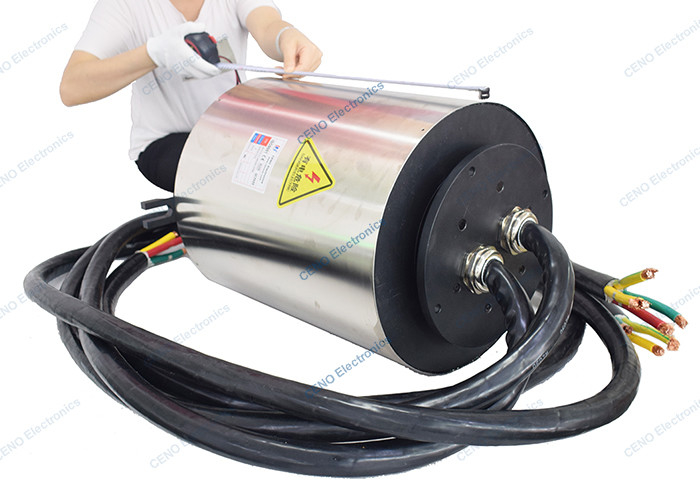

IP66 Water proof High Current Electrical Carbon Brush Mechanical Slip Rings
BHCN-C-08250-IP66 is CENO new high current carbon brush slip rings with large size external diameter 410mm and high protection grade IP66 for marine application. It’s also named center current collector, high current slip rings or marine slip rings. Can transmit 250A current or higher current for different applications. Adopt binding post connect, easy to connecting wires, because of the excellent weather resistance and high electrical safety it’s widely applied to mining equipment, marine machinery etc. More information please contact us.
Features
Applications
Optional
Specification
|
BHCN-C-08250-IP66 |
Specification |
| Current & Circuits | 8 circuits * 250A |
| Rating Voltage | 0-480 VAC/VDC |
| Dielectric strength | ≥1500VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC |
| Contact resistance | 30mΩ (50rpm) |
| Contact material | Copper graphite |
| Housing material | Aluminum Alloy |
| Working temperature | -20°C~+60°C |
| Working humidity | 60 %RH |
| IP protection grade | IP66 |
| Operating speed | 0~10rpm |
| Lead wire size | Four-core wire (90mm2) |
|
Lead wire length |
Rotor : 3000mm; Stator : 3000mm |
| External diameter | Ø410mm |
| Rotation way |
Rotor side: Flange installation Stator side: Anti-rotation Tab |
Outline Drawing
Why Choose Us:
The Experts in Ethernet Signal Slip Rings and Low Temperature Slip Rings
For almost 20 years, CENO Electronics has been the go-to company for the development and manufacturing of slip rings. With over 5000 customized products available, we take pride in offering a wide range of slip ring solutions, including electric slip rings, signal slip rings, functional slip rings, pneumatic & hydraulic rotary joints, fiber optic rotary joints, and RF rotary joints.
One specialty that sets us apart is our expertise in Ethernet signal slip rings and low temperature slip rings. Our Ethernet signal slip rings can transfer high speed data signals without interference, while our low temperature slip rings are designed to operate in temperatures as low as -60˚C. These important features make our slip rings reliable solutions for applications in military, aerospace, and other industries.
At CENO Electronics, we value our customers and strive to provide them with the best products and services possible. Our commitment to quality, innovation, and customization has earned us the trust and loyalty of our clients. Therefore, if you are looking for a reliable slip ring supplier with extensive experience in Ethernet signal slip rings and low temperature slip rings, look no further than CENO Electronics.
