| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN000-04P4-07P2-IP65 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 1000pcs per month |
| Current & Circuits: | ４circuits*２５A; ７circuits * 10A | Rating Voltage: | 0~400VAC/VDC |
|---|---|---|---|
| Dielectric Strength: | ≥1500VAC@50Hz | Isolation Resistance: | ≥500MΩ@500VDC |
| Electrical Noise: | ≤30mΩ (50rpm) | Operating Speed: | 0~300rpm |
| Contact Material: | Precious Metal | Housing Material: | Aluminum Alloy |
| Working Temperature: | -20°C~+60°C | Working Humidity: | 60% |
| IP Protection Grade: | IP65 | Lead Wire Length: | Rotor : 1000mm Stator : 1000mm |
| External Diameter: | Ø86mm | ||
| High Light: | Industry IP65 Waterproof Slip Ring,Aluminum Alloy Waterproof Slip Ring,300rpm Electrical Slip Ring |
||

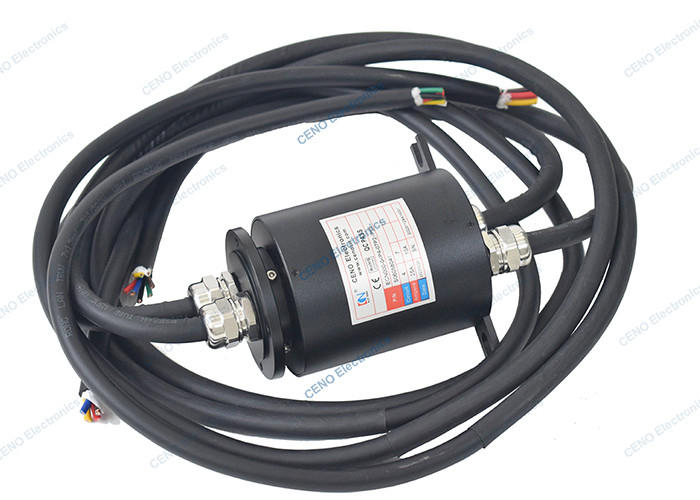

IP65 Water proof slip ring with 300rpm ＆ high cost performance for industry
ECN000-04P4-07P2-IP65 is CENO Water proof slip ring with IP65 and can be designed to IP68 for specific application, It’s suit for harsh and high humidity environment, such as the Marine scientific research, seabed exploration, offshore cable winches. We can provide and customize kinds of function slip rings by integrate electric power, RF, Fiber optic, Pneumatic/Hydraulic, signals as Ethernet, Encoder, Profi-net or HDMI etc, detail as special requirements. More information please contact us.
Features
Applications
Optional
Specification
|
ECN000-04P4-07P2-IP65 |
Specification |
| Current & Circuits |
4 circuits * 25A (400VAC) 7 circuits * 10A (400VAC) |
| Rating Voltage | 0-400VAC/VDC |
| Dielectric strength | ≥1500VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC |
| Contact resistance | 30mΩ (50rpm) |
| Contact material | Precious Metal |
| Housing material | Aluminum Alloy |
| Working temperature | -20°C~+60°C |
| Working humidity | 60 %RH |
| IP protection grade | IP65 |
| Operating speed | 0~300rpm |
| Lead wire length | Rotor:1000mm; Stator:1000mm |
| Rotation Way | Flange installation |
Outline Drawing
Why Choose Us:
The Experts in Ethernet Signal Slip Rings and Low Temperature Slip Rings
For almost 20 years, CENO Electronics has been the go-to company for the development and manufacturing of slip rings. With over 5000 customized products available, we take pride in offering a wide range of slip ring solutions, including electric slip rings, signal slip rings, functional slip rings, pneumatic & hydraulic rotary joints, fiber optic rotary joints, and RF rotary joints.
One specialty that sets us apart is our expertise in Ethernet signal slip rings and low temperature slip rings. Our Ethernet signal slip rings can transfer high speed data signals without interference, while our low temperature slip rings are designed to operate in temperatures as low as -60˚C. These important features make our slip rings reliable solutions for applications in military, aerospace, and other industries.
At CENO Electronics, we value our customers and strive to provide them with the best products and services possible. Our commitment to quality, innovation, and customization has earned us the trust and loyalty of our clients. Therefore, if you are looking for a reliable slip ring supplier with extensive experience in Ethernet signal slip rings and low temperature slip rings, look no further than CENO Electronics.
