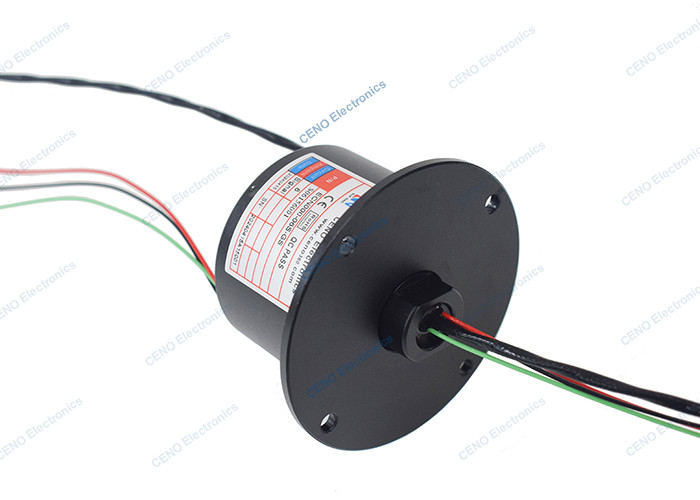

High Speed Slip Ring With 3000rpm And CAN Bus Signal Within Low Temperature
  • High Speed Slip Ring With 3000rpm And CAN Bus Signal Within Low Temperature
  • High Speed Slip Ring With 3000rpm And CAN Bus Signal Within Low Temperature
  • High Speed Slip Ring With 3000rpm And CAN Bus Signal Within Low Temperature

High Speed Slip Ring With 3000rpm And CAN Bus Signal Within Low Temperature

Place of Origin China
Brand Name CENO
Certification CE,RoHS,ISO9001,UL
Model Number ECN000-06S-GS
Product Details
Current & Circuits:
1*CAN Bus; 2*1A; 1*PE
Rating Voltage:
0-24VAC/VDC
Dielectric Strength:
≥300VAC@50Hz (Signal)
Isolation Resistance:
≥100MΩ@300VDC
Electrical Noise:
Max 30mΩ (50rpm)
Operating Speed:
0~3000rpm
Contact Material:
Gold To Gold
Housing Material:
Aluminum Alloy
Working Temperature:
-40°C~+55°C
Working Humidity:
60%
IP Protection Grade:
IP51
External Diameter:
Ø56mm
Installation:
Fix Up Stator Side With Anti-rotation Side
Lead Wire Length:
Rotor : 300mm Stator : 300mm
Lead Wire Size:
AWG24# Wire Teflon UL; 2-cores Twisted Shield Wire
High Light:

3000rpm High Speed Slip Ring

,

Low Temperature High Speed Slip Ring

,

CAN Bus High Speed Slip Ring

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Cartons/As request
Delivery Time
1 weeks
Payment Terms
T/T,Paypal, Western Union, L/C
Supply Ability
1000pcs per month
Product Description

High Speed Slip Ring with 3000rpm and CAN Bus Signal within Low Temperature



ECN000-06S-GS is CENO high speed slip ring with 1 circuits CAN Bus and 2 circuits 1A signal for vehicle system, and working stably in temperature -40°C~+55°C. It’s can be called CAN Bus slip ring too, for the CAN Bus signal. Enables data to be transmitted reliably and efficiently between devices, and connects various electronic control units inside the vehicle like a nervous system. It is simple, low cost, reliable and able to working in harsh environments. For more information please contact CENO expert.





Features

  • Transmit data or signals reliably and efficiently, and simple, low-cost & suit harsh environment
  • Can be integrated various data
  • Install easy & Free maintenance



Applications

  • Vehicle system
  • Analog & simulation instrument
  • Intelligent housing system
  • Medical equipment
  • Detection equipement



Optional

  • Circuits, Voltage, Current
  • Signals and data
  • Contact / Housing Materials
  • Protection grade
  • Working speed & temperature






Specification

ECN000-06S-GS

Specification
Current & Circuits 1 circuits * CAN BUS; 2 circuits * 1A; 1 circuit * PE
Rating Voltage 0-24VAC/VDC
Dielectric strength ≥300VAC@50Hz (Signal)
Isolation resistance ≥100MΩ@300VDC
Contact resistance ≤30mΩ (50rpm)
Operating speed 0~3000rpm
Working temperature -40°C~+55°C
Working humidity 60 %RH
IP protection grade IP51
Contact material Gold to Gold
Housing material Aluminum alloy
Outer Diameter Ø56mm
Lead wire size

AWG24# Wire Teflon UL

2-cores twisted shield wire

Lead wire length Rotor: 300mm; Stator: 300mm
Installation Stator side flange fixed






Outline drawing

High Speed Slip Ring With 3000rpm And CAN Bus Signal Within Low Temperature 0







Smililar Applications





The flaw detector is used for inspect defect point in some tubes.How to point out the defect place is the difficulty.The X-ray is used to take pictures of the welding seam. Some detectors are using micro camera to take photo.The pictures can be seen to see whether there are any welding defects in the welding seam.




Spec of slip ring for flaw detector

- Through hole : 38.1mm

- Circuit number: 6

- Signal frequency: 500KHz~ 1MHz

- Current & voltage: 220VAC

- Rotation speed: 1500RPM

- Life: 100 million rotation
