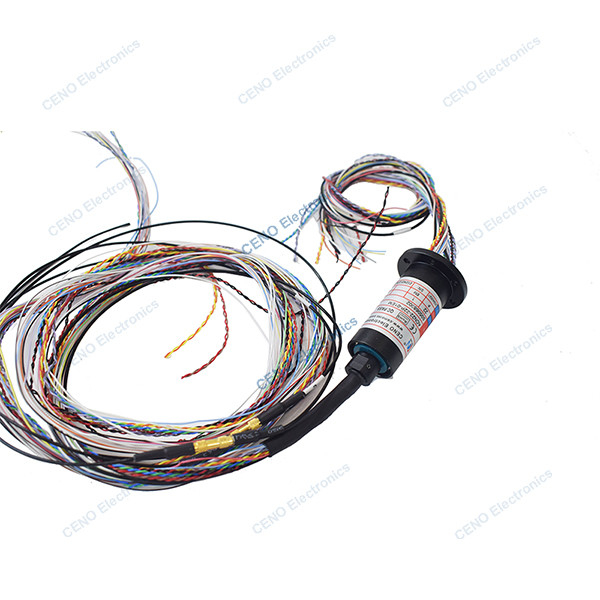

HDMI Video Slip Ring Capsule with PLA analog Video & 100M Ethernet Signal
ACN22-22P-01EM is CENO new HDMI Video Slip Ring, which combine HDMI Signal, PLA Analog video signal, Ethernet signal with circuits electric power for the low temperature environment applications during -40°C~+60°C. CENO have manufactured and customized kinds of integrate slip rings for different applications as customer special requirement. It features compact structure and light weight, specially suit for the photoelectric pod, radar communication or VR applications. More information please contact us.
Features:
Features
- Aluminum alloy housing & gold to gold contact materials
- Suit for Low Temperature environment -40°C~+60°C
- Can be integrated various data
Applications
- VR application
- Photoelectric pod
- Radar communication
- High definition head
- Robot
Optional
- Circuits, Voltage, Current
- Integrate signal / data
- Working temperature
- Shape and Dimensions
- Working speed
Technical Parameters:
|
ACN22-22P-01EM
|
Specification |
|
Current & Circuits
|
1 group HDMI Signal; 1 group PLA analog Video Signal; 1 group 100M Ethernet Signal; 13 circuits * 2A; 2 circuits * 1A
|
|
Rating Voltage
|
0-48VAC/VDC
|
|
Dielectric strength
|
≥500VAC@50Hz(P);
≥100VAC@50Hz(S);
|
|
Isolation resistance
|
≥1000MΩ@500VDC(P);
≥10MΩ@100VDC(S);
|
|
Contact resistance
|
≤35mΩ (50rpm)
|
|
Contact material
|
Gold to Gold
|
|
Housing material
|
Aluminum alloy
|
|
Working temperature
|
-40°C~+60°C
|
|
Working humidity
|
60 %RH
|
|
IP protection grade
|
IP40
|
|
Operating speed
|
0~300rpm
|
|
Outer diameter
|
Ø22mm
|
|
Lead wire size
|
AWG28# Tin coated Teflon wire;
RF 1.32 coaxial wire
|
|
Lead wire length
|
Rotor:1000±10mm; Stator:300±5mm
|
Outline drawing
More informations:
