Capsule Slip Ring
>
|
|
| Place of Origin | China |
| Brand Name | CENO |
| Certification | CE,RoHS,UL,ISO9001 |
| Model Number | ACN22W-03P4 |

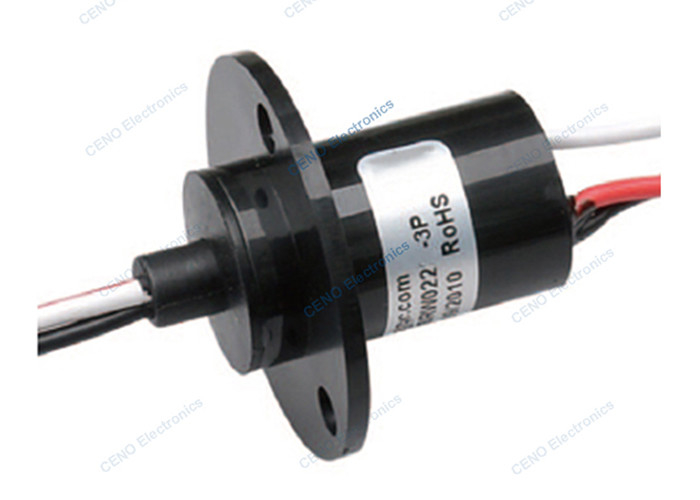

ACN22W-03P4 is CENO capsule slip ring with 3 circuits 15A or 20A option as different applications, which is designed for low temperature environment, and working stably within temperature -40℃ to +80℃. Capsule slip ring is a general term for a series of conductive slip rings with a circular flange attached to the shell. CENO have designed and manufactured kinds of capsule slip rings for advanced equipment, such as the Instrument, apparatus, radar antenna etc,. For more information please contact us.
Features
Applications
Optional
Specification
| ACN22W-03P4 | Specification |
| Current & Circuits | 3 circuits * 15A or 20A |
| Rating Voltage | 0 ~ 120 VAC / VDC |
| Dielectric strength | ≥500VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC |
| Electrical Noise | ≤10mΩ (50rpm) |
| Working humidity | ≤ 60% |
| Working temperature | -40℃ ~ +80℃ |
| Outer diameter | Ø22mm |
| Operating speed | 0~300 rpm |
| Contact material | Precious Metal |
| Housing material | Engineering Plastics |
| Lead wire size | AWG14 PTFE |
| Lead wire length | 250mm (or as request) |
| Rotation Way | Flange installation |
Outline drawing
