Capsule Slip Ring
>
|
|
| Place of Origin | China |
| Brand Name | CENO |
| Certification | CE,RoHS,UL,ISO9001 |
| Model Number | ACN22W-03P5 |

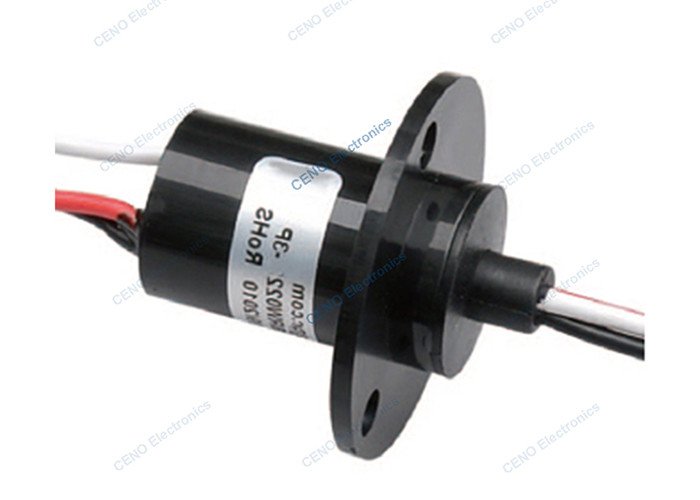

ACN22W-03P5 is CENO miniature slip ring capsule with 3 circuits 30A and external diameter Ø22mm which is designed for low temperature environment, and working stably within temperature -40℃ to +80℃. Capsule slip ring is a general term for a series of conductive slip rings with a circular flange attached to the shell. CENO have designed and manufactured kinds of capsule slip rings for advanced equipment, such as the Instrument, apparatus, radar antenna etc,. For more information please contact us.
Features
Applications
Optional
Specification
|
ACN22W-03P5 |
Specification |
| Current & Circuits | 3 circuits*30A |
| Rating Voltage | 0 ~ 120 VAC / VDC |
| Dielectric strength | ≥500VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC |
| Electrical Noise | ≤10mΩ (50rpm) |
| Working humidity | ≤ 60% |
| Working temperature | -40℃ ~ +80℃ |
| Outer diameter | Ø22mm |
| Operating speed | 0~300 rpm |
| Contact material | Precious Metal |
| Housing material | Engineering Plastics |
| Lead wire size | AWG12 PTFE |
| Lead wire length | 250mm or (as request) |
| Rotation Way | Flange installation |
Outline drawing
Support and Services:
We provide technical support and service for our Capsule Slip Ring products. Our team of experts is available to assist you with any questions you may have about the product, its installation, its use and maintenance. We also offer troubleshooting and repair services if the product requires it. If you need to replace any parts of the product, we can provide them to you quickly and at a competitive price.
We also provide regular maintenance and inspection services for our Capsule Slip Ring products. This helps to ensure that the product is functioning properly and that it is in good condition. We also provide warranty coverage for our products, so you can rest assured that your purchase is protected.
Our customer service team is available to answer any questions you may have about our Capsule Slip Ring products. We are dedicated to providing the best possible support and service for our customers, and we look forward to hearing from you.
