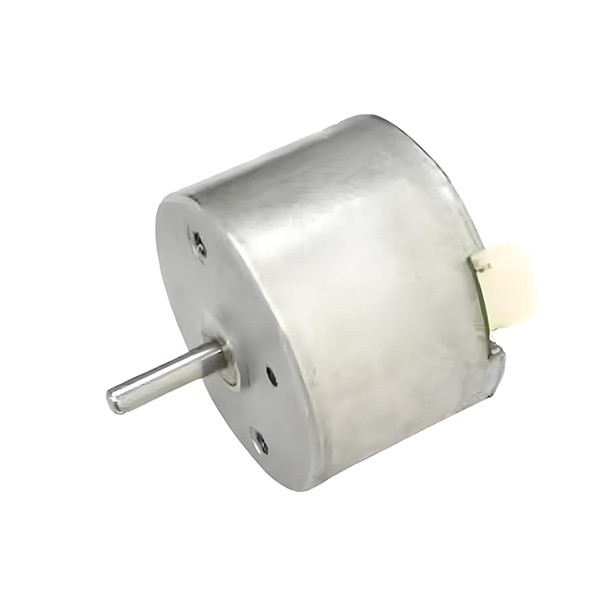

CNBL-3220DO BLDC MOTOR
PN# CNBL-3220DO
Power 20 ~ 100W
Custom Configuration
If you want to know more information about how CENO Motor can fit your specification and application, please contact us
Features
- Big Large torque,long life
- Higher efficiency, Lower noise
- Out-rotor structure, Direct-drive
- Working stable and smooth
- Install easy & Free maintenance
Applications
- Smart applications
- Instrument
- Micro Pump
- Micro Valve
- Meter
Optional
- Circuits, Voltage & current
- Output shaft
- Lead wire & mounting hole
- Connector
- Working speed
Optional
| CNBL-3220DO Parameter |
| Voltage |
Operating range |
8~16 |
18~26 |
| |
Nominal V |
12 |
24 |
| NO LOAD |
Working speed rpm |
3200 |
6310 |
| |
Current A |
0.1 |
0.097 |
| AT MAXIMUM EFFICIENCY |
Working Speed |
2667 |
5496 |
| |
Current A |
0.5 |
0.653 |
| |
Torque mN.m |
13.342 |
19.177 |
| |
Output W |
3.726 |
11.037 |
| STARTING |
Torque mN.m |
80.05 |
148.618 |
| |
Current A |
2.5 |
4.409 |
Outline drawing
