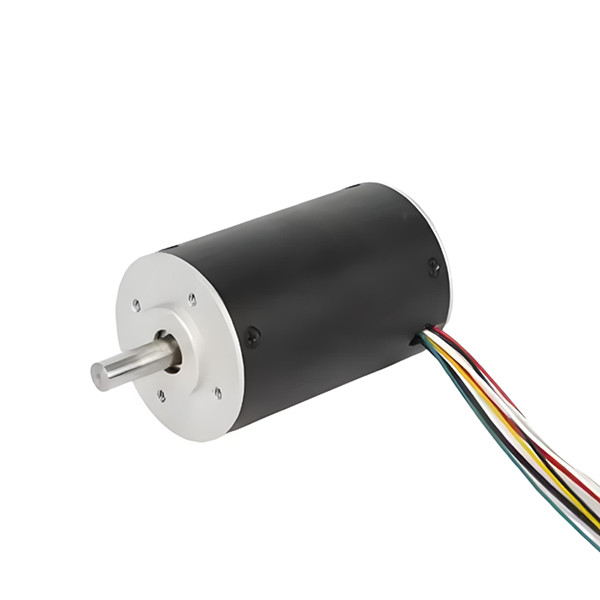

CNBL-5285DI BLDC MOTOR
PN# CNBL-5285DI
Power 15 ~ 120W
Custom Configuration
If you want to know more information about how CENO Motor can fit your specification and application, please contact us
Features
- Big Large torque,long life
- Higher efficiency, Lower noise
- Out-rotor structure, Direct-drive
- Working stable and smooth
- Install easy & Free maintenance
Applications
- Smart applications
- Instrument
- Micro Pump
- Micro Valve
- Meter
Optional
- Circuits, Voltage & current
- Output shaft
- Lead wire & mounting hole
- Connector
- Working speed
Optional
| CNBL-5285DI Parameter |
| Voltage |
Operating range |
8~16 |
18~26 |
| |
Nominal V |
12 |
24 |
| NO LOAD |
Working speed rpm |
2608 |
3787 |
| |
Current A |
0.251 |
0.181 |
| AT MAXIMUM EFFICIENCY |
Working Speed |
2293 |
3429 |
| |
Current A |
1.826 |
1.735 |
| |
Torque mN.m |
74.29 |
101.85 |
| |
Output W |
17.835 |
36.578 |
| STARTING |
Torque mN.m |
613.92 |
1078.38 |
| |
Current A |
13.263 |
16.637 |
Outline drawing
