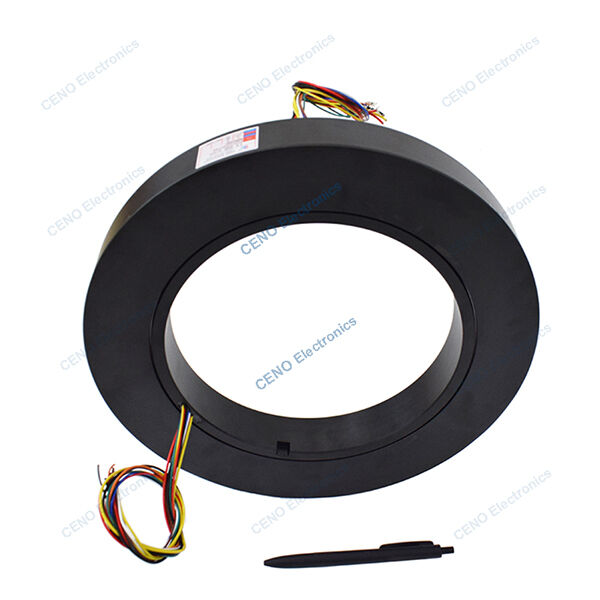

Electric Power Pancake Slip Ring with Through Hole 210mm and Thickness 40mm
PCN210-03P2-08S is CENO pancake slip ring with through hole 210mmand 40mm thickness that is available for custom for different application. Pancake slip ring is as another form of though hole slip rings. CENO pancake slip rings are designed for some equipment which vertical space is limited while horizontal space is less restrictive.This type slip ring provides ultra-thin thickness for special limited installation space. For more information about how CENO pancake slip ring can fit your application please contact us.
Features
- Through hole 0 - 600mm option
- Thickness 6 - 51mm option
- Working speed to be 500 rpm
- Integrate RS, Video, USB Profi-net & Ethernet signal available
Applications
- Automatic machine
- Rotary lamp box
- Textile robots
- LED light & instrument
- Medical equipment
Optional
- Circuit, Voltage, Current
- Signals and data
- Contact / Housing Materials
- Protection grade
- Working speed & temperature
Specification
| PCN210-03P2-08S Specification |
| Current & Circuits |
3 * 10A; 8 * 5A |
| Rating Voltage |
0 ~ 220 VAC/VDC |
| Dielectric strength |
≥500VAC@50Hz; ≥300VAC@50Hz |
| Isolation resistance |
≥500MΩ@500VDC; ≥100MΩ@300VDC |
| Contact resistance wave |
≤ 70mΩ |
| Working temperature |
-20°C~+60°C |
| Working humidity |
60 %RH |
| IP protection grade |
IP51 |
| Operating speed |
0~12rpm |
| Inner diameter |
Ø210mm |
| Outer diameter |
Ø320mm |
| Contact material |
Precious Metal |
| Housing material |
Aluminium Alloy |
| Lead wire size & length |
As customized |
Outline drawing
